Electric Lifting Platform , Motorized Lab Jack , 10mm Travel Linear Slide Axis
High precision electric lifting platform: PT-GD404
Product features
■ Standard step motor 9 pin interface, the company's motion controller can achieve automatic control.
■ The lifting platform system adopts scissor-type lifting support, double guide rail and five axis over positioning mechanism, smooth movement, large load bearing and long life.
■ Precision grinding with screw drive, comfortable movement, can be arbitrary lifting and small return.
■ Stepper motor and screw are connected by high quality elastic coupling, synchronous transmission, good depolarization performance, reduce eccentric disturbance and low noise.
■ The electric lifting platform is flat and can be used with other kinds of platforms to form a multi-dimensional electric adjustment platform.
■ Limit function, optional: initial zero function, replace servo motor, add rotary encoder, accept product restructuring and customization.
Product specification
| Item Number | PT-GD404 | |
| Structure Specifications | Travel Range | 10 mm |
| Dimension of Platform | 50mm x 74mm | |
| Drive Mechanism | Grinding Screw | |
| Travel Guide | Crossed- Roller Bearing | |
| Stepper Motor (1.8°) | SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle | |
| Material – Finish | Aluminum Alloy - Black-Anodized | |
| Load Capacity | 10kg | |
| Weight | 1.5kg | |
| Accuracy Specifications | Minimum Adjust Distance | 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver |
| Max Velocity | 5mm/sec | |
| Repeatability | 7μm | |
| Backlash | 4μm | |
| Lost Motion | 3μm | |

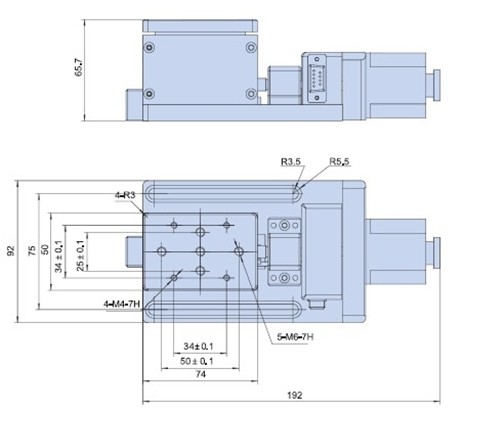

Product Dimension Map

|
