Collimatora） Power: dc 5V，2.5A
b） Photoelectric positioning timing 30 seconds, automatic shutdown
X-ray Tube
a） Top voltage：125kV
b） Focus：Largest：1.8mm
c） Anode heat capacity：40kJ；
d） Anode heat capacity：Small focus: 1.27kW；Large focus:5.3kW

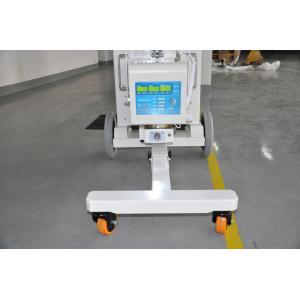

Machine frame
a)Up and down range:1350mm
b)Highest≥1800㎜
c)Lowest≤600㎜
d)Mechanical brake, brake force≥100N
Flat panel detector and workstation
(pls check other user manual)
Equipment introduction and technical performance
Intended use
This product is mainly used for digital X-ray imaging of limbs or
other body parts with low attenuation degree for clinical
diagnosis.
Contraindication
a) Use with caution during pregnancy, especially in early
pregnancy;This should be done under the guidance of a physician if
necessary
b) Children, young people should pay attention to the gonads,
thyroid protection, to avoid unnecessary X-ray injury.
Equipment composition and working principle
Equipment composition
X-ray generator、collimator、flat panel detector、laptop、machine
frame.
1 Power requirements
a) Power voltage：220V±22V；
b) Phase number: single-phase three wires (Fire wire;Null
wire;safety grounding wire)
c) Power frequency：50Hz±1Hz；
d) Power inner resistance：less than 0.5Ω；
e) Power capacity≥6kVA
2 Working character
Working character: Intermittent load and run continuously
3 Input power：≤6kVA。
4 Maximum output power
P= 100kV×50mA = 5kW
5 Nominal power 100kV，50mA，0.1s，5kW
6 Adjusting range of tube voltage and tube current
a) Photography tube voltage：40kV ～ 110kV；
b) Photography tube current：20mA ～ 100mA；
7 Range of current time product: 0.2mAs ～200mAs
loading time：10ms ～ 4000ms；
