    High Coaxiality Surgical Instruments Surgical Orthopedic Bone Drill Hall Power System

    Ask Lasest Price
    Brand Name : Longermay
    Model Number : LGM-2218
    Supply Ability : 1000 Set/Sets per Month
    Price : $500.00 - $800.00/Sets
    • Product Details
    • Company Profile

    High Coaxiality Surgical Instruments Surgical Orthopedic Bone Drill Hall Power System

    Product Description
    High Coaxiality Surgical Instruments Surgical Orthopedic Bone Drill
    Key Chuck:
    1. Speed Range 0-1200 Rpm
    2. Torque 3.5Nm
    3. Noise ≤40

    Reaming Attachment:
    1. Speed Range 0-400 Rpm
    2. Torque 10Nm
    3. Noise ≤40

    System Features:
    1.Imported Motor
    2.No Limit speed-changing
    3.High Coaxiality, Low-Noise
    4.With the perfect shape of ergonomic design
    5.Long service life. The warranty fo for whole machine is 1 year.
    6.Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa

    Warranty:
    Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.

    Notes
    1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
    2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
    3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
    4. The battery cannot be sterilized ,it is not autoclavable.
    5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
    6. The battery space in the handpiece of the tool should not have any water,after sterilization.
    7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
    easy to be attrite,we suggest each blade only use for 1 surgery.

    Specification
    Item
    Values
    Speed Range(Key Chuck attachment)
    0-1200rpm
    Torque(Key Chuck attachment)
    3.5N.m
    Speed Range(Reaming Attachment)
    0-400rpm
    Torque(Reaming Attachment)
    10N.m
    Operation(V) voltage
    9.6V
    Radial circle run-out
    ≤0.1mm
    Axial movement
    ≤0.5mm
    Battery Volumn
    2100mAh
    Biggest drill bit diameter
    8mm
    Diameter of Cannulation
    6.5mm
    Details Images

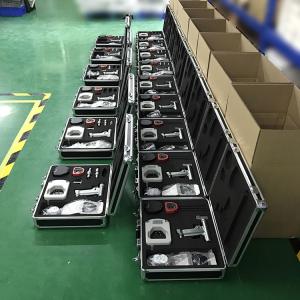

    Configuration
    Orthopedic Multi Function Drill
    Quantity
    handpiece
    1
    battery
    1
    charger
    1
    Key chuck or reaming Attachment
    1
    sterilizing channel
    1
    aluminum alloy case
    1
