For horizontal load transfers of a wide range of material, Caldwell has the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 100 tons, we have the solution you need and each style can be designed for your specific application.
Basic pendant controls allow carts to travel in all directions across smooth and semi-smooth surfaces such as concrete and steel floors up to 45 tons. Ideal for assembly lines, bay-to-bay transfers, material transfers and maintenance.
Product Options:
Custom deck surface, Integrated screw-jack lift , Integrated scissor lift , Fixture cradle decking , Non-marking urethane drive wheels , Steel wheels , Stainless steel wheels , Fork lift pockets , Weigh scales , Radio controls , Soft start

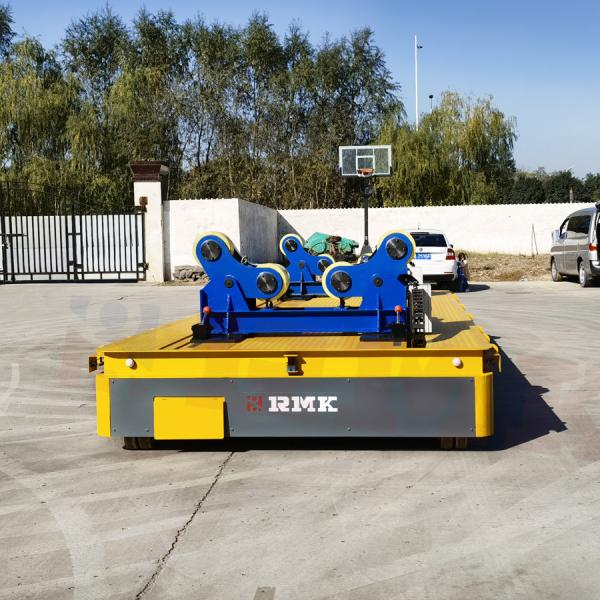

12 ton horizontal load transfers cart Industrial transfer cart
Electric transfer cart is also known as electric flat cart, which is a kind of electric rail transportation car that are widely used in factories and plants. Transfer cart is a rail type transportation vehicle, and users need to lay rail tracks on the ground that is generally H-shaped contact rail in advance. Battery transfer cart can work automatically under the motivation of electricity, which is a flat car that has no cover or steeling wheel. Rail transfer cart has simple structure, easy operation, large carrying capacity, strong dirty and pressure resistance, easy maintenance and long service life.
Industrial transfer cart has become a preferred vehicle that is used inside the plant or short distance transportation between plats because of its convenience, economy, practicability and availability. Heavy duty flat cart is mainly applied to movable lifting water blank car, brickyard, refractory factory, ceramics factory and electric sanitation removal trucks. Moreover, pullet transfer carts are also used in mill plant, concentrating mill, casting factory, chemical factory, furnace charge factory, farms and so on.
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000× 2300 | 10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
