    E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : E320C 320C E320D 320D
    Price : 200.00-800.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 500 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    E320C 320C E320D 320D Excavator Swing Gearbox 148-4644

    Parts E320C 320C E320D 320D Swing Gearbox 148-4644 Reduction Gear For Excavator

    Quick Details

    Model:E320C 320C E320D 320D
    Brand: TGFQ
    Part Number: 148-4644
    Part Name: Excavator swing gearbox without motor
    Weight: 200KG
    Process: Heat Treatment

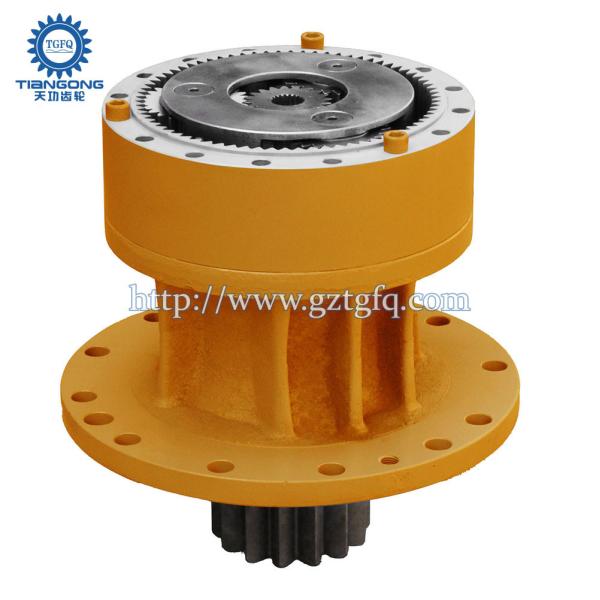

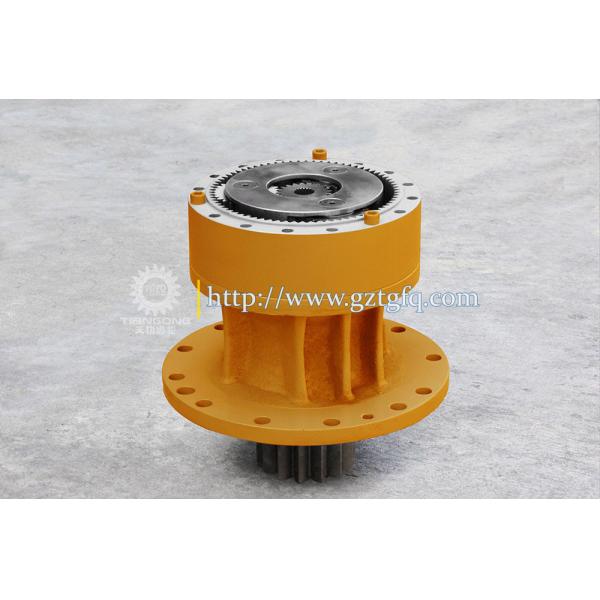

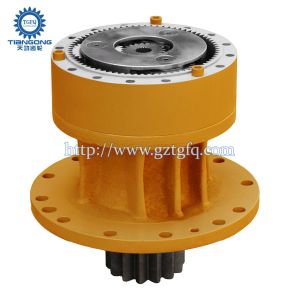

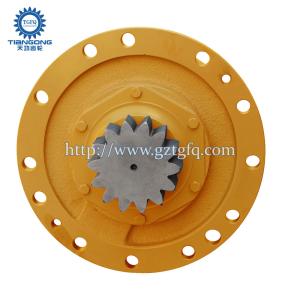

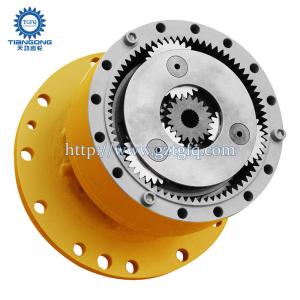

    Excavator Swing Gearbox Photo:

    Excavator Swing Gearbox Drawing:

    Pos.Part NoQtyParts Name
    1094-0584[6]WASHER (40.3X72X1-MM THK)
    2094-1509[3]SHAFT-PLANETARY
    3148-4733[3]GEAR-PLANETARY (26-TEETH)
    4114-1581[1]SPACER (57.5X74X6-MM THK)
    5148-4732[1]GEAR-SUN (20-TEETH)
    6093-1729[2]RING-RETAINING
    7148-4632[1]GEAR-SUN (23-TEETH)
    8191-2578[1]CARRIER-PLANETARY
    97Y-1434[1]SPACER (40X69.5X6-MM THK)
    10148-4637[1]CARRIER-PLANETARY
    11148-4640[1]RING-RETAINING
    12148-4643[1]BEARING
    13095-1022[1]BEARING-ROLLER
    14148-4642[1]SEAL-O-RING
    15227-6228[1]CAGE
    168T-4183 M[6]BOLT (M12X1.75X40-MM)
    178T-4223[6]WASHER-HARD (13.5X25.5X3-MM THK)
    18199-4561[2]SEAL-LIP TYPE
    19148-4636[1]SHAFT-PINION
    20148-4638[1]HOUSING
    213K-0360[1]SEAL-O-RING
    226V-7238[1]VALVE-SHUTOFF
    23148-4634[3]SHAFT-PLANETARY
    24095-0891[3]PIN-SPRING
    25148-4635[1]GEAR-RING (73-TEETH)
    26148-4633[3]GEAR-PLANETARY (25-TEETH)
    277Y-0252[6]BEARING AS-ROLLER
    28094-0611[6]WASHER (47.3X76X1-MM THK)
    29095-0886[3]PIN-SPRING
    30199-4582[3]BEARING AS
    31171-9383[1]SPACER
     M METRIC PART


    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse,It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

    FAQ:
    Q: How to ship my order?
    A: Small package, will be by express such as DHL, TNT,UPS and etc.
    Big quantity order, will be by air or by sea.


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
