1. Working principle
The precursor is formed into finished products through the constant
speed wheel group and the drawing die, and is transported to the
take-up wheel through the wire guide wheel at a certain speed
through the last constant speed wheel.
The wire drawing machine is to ensure that there is a certain
tension between the constant speed wheel and the take-up wheel to
complete the wire drawing process. The constant speed wheel set is
driven by the main motor.
The speed depends on the product specification and the linear speed
is also certain. The linear speed of the take-up reel increases
with the increase of the diameter of the take-up reel.
In order to ensure a certain tension, that is, to maintain the same
linear speed of wire feeding and winding, it is necessary to
continuously reduce the speed of the winding wheel to ensure that
the winding speed of the winding wheel is constant. The speed
regulation of the take-up wheel is realized by the speed regulation
motor.
2. Control requirements
(1) Tension control of filament: too fast and too high tension can
easily lead to wire breakage; The winding speed is too slow and the
tension is too small, which affects the production efficiency. High
speed regulation accuracy is required.
(2) System adaptability: a wire drawing machine needs to process
10-70um filaments of different specifications, and different
products have different tension control requirements.
| Machine Specs | 24DHA14 |
| Inlet wire diameter | 0.80 mm - 1.20 mm |
| Outlet wire diameter | 0.08 mm - 0.32 mm |
| Running speed | 2200 m/min |
| Number of blocks | 24 pcs |
| Take up power | 5.5kW-4P X 2 AC motor |
| Brake | Pneumatic |
| Mechanical elongation | 15%(1st - 23rd) + 8.7%(24th) |
| Take-up spool | 300 mm - 400 mm |
| Transmission shaft | made of 42CrMo |
| Power consumption | 12 - 30 KW |
| Power supply | 380V - 480V, 50Hz / 60Hz, 3 Phase |

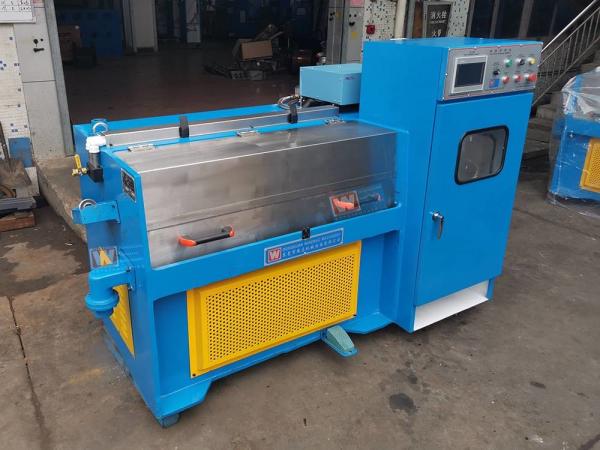

Machine Photo
