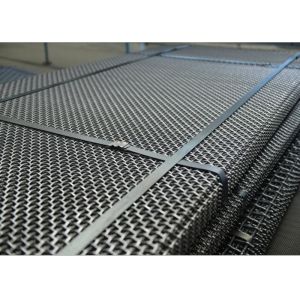

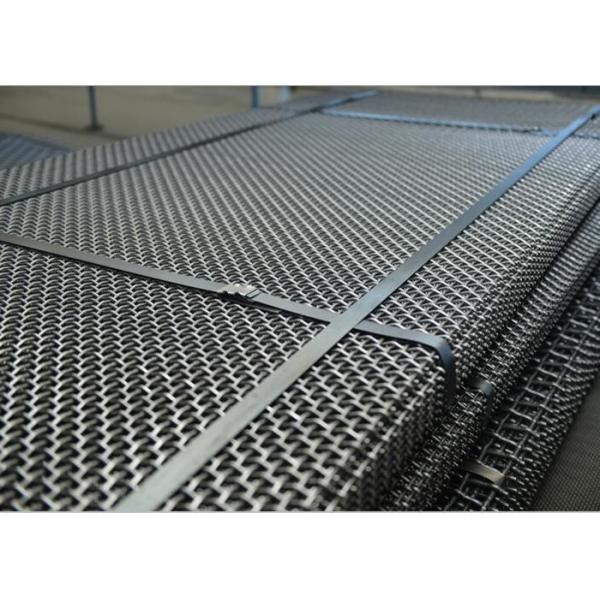

High Manganese 65MN Woven Vibrating Screen Mesh With Clamp Bending
Quick Details
Woven vibrating screen mesh is also called quarry screen mesh,
crusher screen mesh. It is made of
spring steel wire, high carbon steel wire, medium carbon steel
wire, manganese steel wire and stainless
steel wire.
It has different weaving types and edge preparations. The main
weaving types are flat top and crimped.
Crimped type can be divided into single wire crimped and double
wire crimped.
The high quality raw materials makes woven vibrating screen mesh
have many features, such as high
tensile, wear, temperature and weather resistance and so on.
With so many features, the woven vibrating screen mesh is used on
vibrating machines in screening and
sizing all kinds of sand, gravel, coal, stone, rock and other
materials in mining, quarry, aggregate production
industries.
 |  |
| Plain weave woven vibrating screen mesh | Pre-crimped weave woven vibrating screen mesh |
 |  |
| Intermediate weave woven vibrating screen mesh | Lock crimped woven vibrating screen mesh |
 |  |
| Plain edge | Bent edge |
 |  |
| Reinforced shroud edge | Bolt shroud edge |
Specifications
Material: High tensile spring steel, manganese steel and stainless
steel.
Wire diameter: 0.71mm - 12.5mm.
Opening size: 1mm - 100mm.
Weaving type: Double crimped, intermediate crimped, flat top
crimped, lock crimped.
Mesh type: Square, rectangular slot, long slot.
Surface treatment: Black or red color painted.
Edge preparation: Plain, bent, reinforced shroud, welded shroud,
bolt shroud.
Hook type: C or U hook for 30° - 180°.
(Special size also could be customized as your request.)
The following are some parts of specification as reference, we also
could make according to
your requirement.
Square hole
Hole size
(mm) | Light types | Middle types | Heavy types |
wire diameter
(mm) | open area% | wire diameter
(mm) | open area% | wire diameter
(mm) | open area% |
| 125.0 | | | 10.0 | 86 | 12.5 | 83 |
| 112 | | | 10 | 84 | 12.5 | 81 |
| 100 | | | 10 | 83 | 12.5 | 79 |
| 90 | | | 10 | 81 | 12.5 | 77 |
| 80 | | | 10 | 79 | 12.5 | 75 |
| 71 | | | 10 | 77 | 12.5 | 72 |
| 63 | 8 | 79 | 10 | 74 | 12.5 | 70 |
| 56 | 8 | 77 | 10 | 72 | 12.5 | 67 |
| 50 | 6.5 | 79 | 8 | 74 | 10 | 69 |
| 45 | 6.5 | 77 | 8 | 72 | 10 | 67 |
| 40 | 6.5 | 75 | 8 | 69 | 10 | 64 |
| 36 | 5.0 | 77 | 6.5 | 72 | 8 | 67 |
| 32 | 5.0 | 75 | 6.5 | 70 | 8 | 64 |
| 28 | 5.0 | 72 | 6.5 | 67 | 8 | 60 |
| 25 | 5.0 | 69 | 6.5 | 64 | 8 | 57 |
| 22 | 4.0 | 72 | 5.0 | 66 | 6.3 | 60 |
| 20 | 4.0 | 69 | 5.0 | 64 | 6.3 | 58 |
| 18 | 4.0 | 67 | 5.0 | 61 | 6.3 | 55 |
| 16 | 3.0 | 70 | 4.0 | 64 | 5 | 58 |
| 14 | 3.0 | 67 | 4.0 | 60 | 5 | 54 |
| 13 | 3.0 | 65 | 4.0 | 58 | 5 | 52 |
| 11 | 2.5 | 67 | 3.0 | 61 | 4 | 54 |
| 10 | 2.5 | 64 | 3.0 | 58 | 4 | 51 |
| 9 | 2.0 | 61 | 3.0 | 61 | 4.0 | 48 |
| 8 | 2.0 | 64 | 2.5 | 58 | 3.0 | 51 |
| 7 | 2.0 | 61 | 2.5 | 55 | 3.0 | 48 |
| 6 | 2.0 | 56 | 2.5 | 50 | 3.0 | 43 |
| 5 | 2.0 | 54 | 2.5 | 44 | 3.0 | 38 |
| 4.5 | 1.8 | 51 | 2.2 | 45 | 2.5 | 41 |
| 4 | 1.6 | 51 | 2.0 | 44 | 2.2 | 41 |
| 3 | 1.2 | 50 | 1.5 | 40 | 2.0 | 38 |
| 2.0 | 0.8 | 50 | 1.2 | 41 | 1.5 | 40 |
| aperture (mm) | wire diameter(mm) | kg/m2 | screening area% |
| 0.70x2.10 | 0.44-0.66 | 2.04 | 67 |
| 1.00x3.00 | 0.60-0.70 | 2.23 | 51 |
| 1.50x4.50 | 0.80x1.00 | 2.04 | 67 |
| 1.50x20.00 | 1.25 | 4.18 | 51 |
| 1.50x50.00 | 1.25 | 4.12 | 53 |
| 2.00x20.00 | 1.60 | 5.41 | 51 |
| 2.00x50.00 | 1.50 | 4.59 | 56 |
| 2.50x50.00 | 1.60 | 4.77 | 59 |
| 3.20x16.00 | 1.60-1.25 | 4.43 | 61 |
| 3.50x50.00 | 1.60 | 3.97 | 67 |
| 6.00x60.00 | 2.80 | 7.5 | 65 |
| 10.00x60.00 | 4.00 | 10.55 | 67 |
| 12.00x60.00 | 4.00 | 9.50 | 70 |
| 20.00x100.00 | 8.00 | 18.77 | 66 |
| 22.00x80.00 | 8.00 | 18.46 | 67 |
| 22.00x100.00 | 8.00 | 17.18 | 68 |
| 24.00x120.00 | 8.00-6.30 | 19.05 | 62 |
| 25.00x120.00 | 8.00 | 15.55 | 71 |
Features
Wear and abrasion resistant.
Heavy impact resistant.
High temperature resistant.
Shock and pull resistant.
High tensile strength and toughness.
Acid, alkali and corrosion resistant.
Long service life.
Applications
Woven vibrating screen mesh can be used as screen deck in quarry
screen and crusher screen to separate
and sort stone, sand, gravel, coal, rock and other materials. It is
widely used in the large scale stone
processing, asphalt mixing plants, coal, metallurgy, chemical and
other industries.
