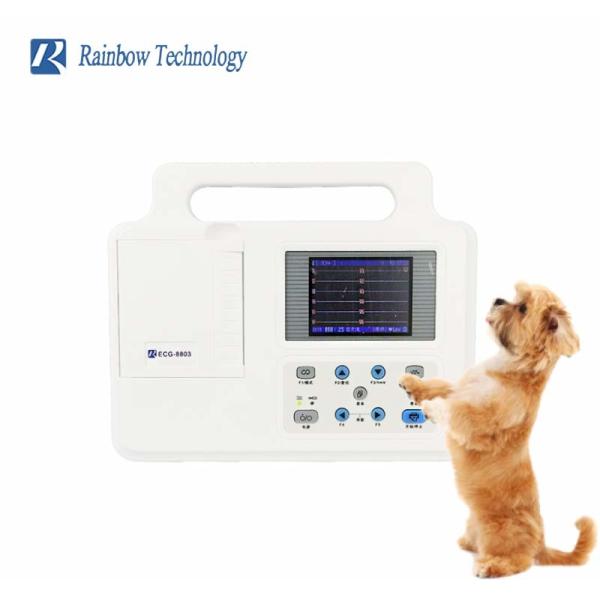

Veterinary clinic vet ecg machine portable electrocardiograph 12
leads ekg electrocardiogram good price
Product Description
1. Full screen display of 12 channel ECG waveforms
2. 3.5 inch wide-screen
3. Digital single channel automatic measurement, analysis and
diagnosis with report printing
4. Multiple operation modes: manual, automatic, rhythm, physical
examination
5. No need to install. Best choice for first aid and shift
6. Light-weight,exquisite and easy to carry
7. Built-in rechargeable li-ion battery, 8-hour battery life
ECG-8801 is a basic ECG Machine that prints single ECG waveform
/channel at a time. This item contains one amplifier channel and
one recording system. This type ECG Machine's paper has space for
only single trace at a time. Thus, all 12 channels ( I,II,III, aVR,
aVL, aVF and V1-V6 ) of ECG Machine report will be printed one by
one on the paper.
Such Type of ECG Machine used to have a multi positioning switch,
by selecting the switch the desired lead connection can be
selected.
However, ECG-8801 comes with microprocessors and with automatic
modes. So, it will print ECG channel automatically one by one
without manually changing the leads.
ECG-8801 uses 50 mm*20m print paper.
Parameters of ECG Machine
Operation mode:Manual/Auto/storage
Standard 12 leads:real-time ECG waveforms
Measure mode:Simultaneously acquisition of 12 lead,
Measure frequency:12Bit/1000Hz(1ms)
AC filter:50Hz/60Hz
EMG filter:25Hz/45Hz
Drift filter:Auto adaption
CMRR:≥95dB
Input circuit:Floating with defibrillation protection
Frequent response:0.05-160Hz(-3db)
Sensitivity:Auto/2.5/5/10/20/40(mm/mv)
Printing:High resolution thermal printer
Communication interface:Standard USB/RS232
Safety standard:IEC I CF(GB9706.1-2007)
Keypad panel:can input clinic information such as patient names
Display:320*240 Graphical LCD
Internal power supply:built-in rechargeable li-ion battery for
8-hour battery life
External power supply:AC 75V-265V Auto adjustment for wide input
range
Standard configuration:
ECG-8801 Electrocardiograph mainframe
ECG suction bulb – one pair
12-channel ECG lead
AC adaptor
Grounding wire
Body/limb clamp – one set
Power line
Thermal print paper- two rolls
Print paper scroll
Operation manual
Q1. What is your terms of packing?
A: Generally, we pack our goods in shockproof and dampproof foam
and brown cartons covered with waterproof plastic film.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 5days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
