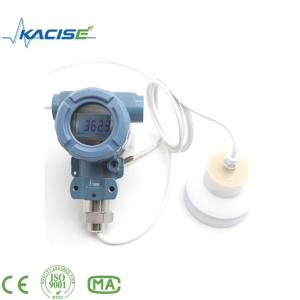

KUS640 Series
Introduction
This sensor provides very short to long-range detection and
ranging, in a compact, robust PVC housing,
designed to meet IP65.
Product Features
◆Power supply: 24VDC, customized support 12-24VDC
◆Special wide temperature LCD display (-30℃～80℃);
◆Vertical installation or axial installation, providing a variety
of liquid level/level interfaces and interface materials;
◆ LCD with parameterization and three setting buttons.
Technical parameter
| Enter |
| Measured variable | liquid level, material level |
| Measuring range | 150mm-1000mm(Can be customized according to demand) 200mm-3000mm/300mm-6000mm/300mm-12000/600mm-20000mm/1.2m-30m/1.8-50m |
| Output |
| Comprehensive accuracy | RS485/4-20mA,±1%FS/ 0.15℃ |
| Temperature compensation | -10℃～70℃ |
| Vibration effects | < ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64) |
| Rated conditions Environmental conditions |
| ambient temperature | -25～+85℃ |
| Storage temperature | -40～+85℃ |
| Protection class | IP65 ,Complies with EN 60529 |
| Electromagnetic Compatibility | EN 61326/A2 Appendix A (2001 ) |
| Display and control |
| show | SFTN liquid crystal, green backlight, 5-digit display. |
| limit value | Free settings |
| Parameter settings | Use 3 buttons |
| Unit | mm,The default unit is m. |
| Weight | About 1.35kg |
| Materials of non-wetted parts |
| Joint | 1NPT,Stainless steel, length 20mm (material and joint
specifications can be customized according to customer
requirements). |
| Electrical connections | Make waterproof connectors, air vent cable entries according to EN
175301-803A |
| Measurement period | ≤default 200ms, user set |
Selection Tips: For special requirements, please contact our company and indicate
it in the order.
Precautions:Selection reminder: For special requirements, please
contact our company and indicate in the order.
1. If you need to calibrate the meter, please contact our company.
Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and
calibrate it after 1 hour of constant temperature.
