Jetty Fender Yokohama Fender Price Protection Fenders Pneumatic
Rubber Fender
Qingdao Florescence have been specializing in Pneumatic Rubber
Fenders for over 25 years. Equipped with advanced manufacture,
test, and R&D equipments, Qingdao Florescence becomes a Chinese
leading marine supplier with the longest history, fastest
development, most abundant capital & technology and the most
competitive products.

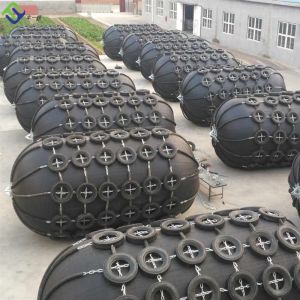

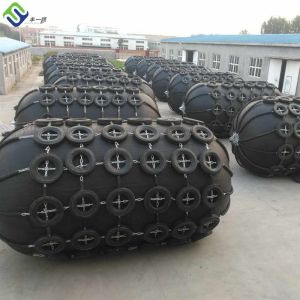

The Pneumatic Rubber Fender is an abrasion-resistant rubber fender
filled with high pressure air.
It can be easily deflated which allows simple and cost effective
relocation and recommissioning in other locations.
Completed with a lattice of used tires connected by a network of
horizontal and vertail chains, which adds further protection to the
fender body.
Our Pneumatic Rubber
Our Pneumatic Rubber Fender have the advantanges of massive energy
absorption with low unit surface berthing and mooring operations.
Advantanges
★ Protects ships and mooring facilities even when excess load is
applied
★ Extremely robust
★ Easily be deflated for transformation and installation
★ Suitable for areas with tidal differences
★ Good absorptivity for eaction force
★ Quickly identificable with complete markings (Identity can also
be customised)
Specification D*L(m) | Initial pneumatic pressure 50KPa | Initial pneumatic pressure 80KPa | Applicable ships tonnage (T) |
Body Weight (Kg) | R (KN) | GEA (KJ) | Body Weight (Kg) | R (KN) | GEA (KJ) |
| 0.5*1.0 | 25 | 64 | 6 | 25 | 83 | 8 | 50 |
| 0.6*1.0 | 32 | 74 | 8 | 32 | 96 | 11 | 50 |
| 1.0*1.5 | 80 | 182 | 32 | 80 | 235 | 44 | 100 |
| 1.0*2.0 | 100 | 257 | 45 | 125 | 335 | 63 | 200 |
| 1.2*2.0 | 120 | 297 | 63 | 165 | 386 | 86 | 300-500 |
| 1.35*2.5 | 165 | 427 | 102 | 226 | 554 | 140 | 300-500 |
| 1.5*3.0 | 315 | 597 | 153 | 370 | 751 | 211 | 1000 |
| 1.7*3.0 | 405 | 639 | 191 | 436 | 830 | 263 | 1000 |
| 2.0*3.5 | 590 | 875 | 308 | 632 | 1138 | 424 | 3000 |
| 2.5*4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 | 10000 |
| 2.5*5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 | 10000 |
| 3.0*5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 | 10000above |
| 3.0*6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 | 10000above |
| 3.3*4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 | 10000above |
| 3.3*6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 | 10000above |
1.Figures on the table comply with ISO 17357; Note:
2.Weight of fender body and net may vary ±10%.;
3.Special sizes are available on request simply
Our Pneumatic Rubber Fenders are used in the various applications
including ship-to-ship & ship-to-dock operations, ports and
terminals. Our Pneumatic Rubber Fenders are designed to protect the
ships and mooring facilities effectively. Our Pneumatic Rubber
Fenders abide by the regulations of ISO 17357 :2014 which insure
perform safetly even under rough berthing operations.
