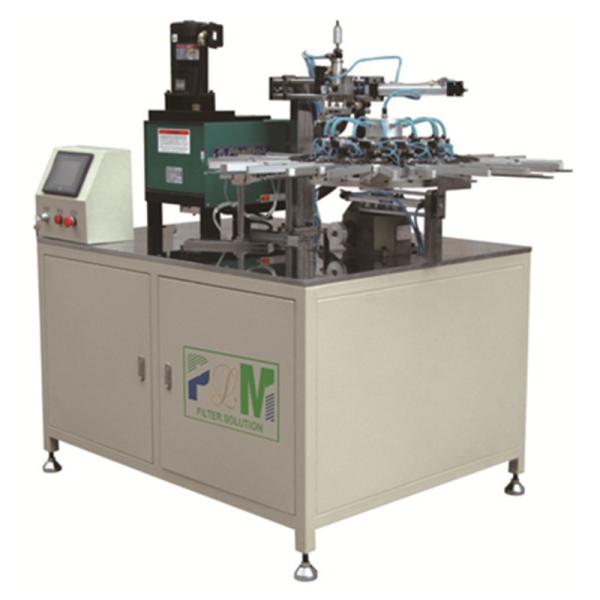

PLJT-250-12 Full-auto Turntable Clipping Machine Material Stainless
Steel M/C weight 600kg
PLJT-250-12 Full-auto Turntable Clipping Machine Brief Introduction
1, The whole working process of the steel strip
forming-clipping-cutting-resuming is automatically finished by the
PLC control pneumatic and machine.it is fast speed and high
efficiency.
2. The steel strip clip the filter paper ends tightly to prevent
the filter element from leakage.
3, The clipping height and width are easily to be adjusted and keep
consistency as well.
4, The computer monitor control is used,which is easy operation.
5, The are 12 clip and convey stations,it is fast speed and high
efficiency.
6, This machine has the cylinder un-loading device,it is high
degree of the automatic.
PLJT-250-12 Full-auto Turntable Clipping Machine parameter
| Product capability | 20~25pcs/min |
| Filter paper height | 30~250mm |
| Pleating height | 10~38mm |
Sizes of Steel strips | a)thickness 0.25~0.3mm b)width 12mm c)coiled material inner Dia.>150mm, outer Dia.<600mm |
| Motor power | 1KW |
| Power supply | 220V/50hz |
| Working sir pressure | 0.6Mpa |
| M/C weight | 600kg |
| M/C siz | 2080×1400×1500mm(L×W×H) |
PLM – Your Reliable Filter Element Production Helper
Founded in 1990, PLM specialized in Filter element manufacturing,
after years of development, PLM has grown into a total solution
designer including consultation, machine and material supply, and
technical support. Our machines have been recognized worldwide for
superior precision, outstanding rigidity, and exceptional
reliability. Today we have more than 200 kinds of machines and
models fulfilling the industry's diverse requirements.
PLM Solutions Contribute To Your Success
PLM is specialized in providing filter production solutions for our
customers. Until now, our solutions cover car & heavy duty air
filters, cabin filters, oil & fuel filters, and
primary/middle/high-efficiency filters. Over 70 kinds of filter
production machines and test machines satisfy customers with
different requirements and budgets. A complete line of filter
materials saves customers purchasing time and cost. All of these
help customers efficient production and high output. Our online and
on-site supports eliminate customers' worries. We have gained the
ISO, CE, and CO certifications, which verify our machines and
materials accord with international and market requirements.
Total Solutions Help Your Qualified & Efficient Production
PLM is committed to filter element machines and filter material
production for several years, we are proficient at offering total
solutions tailored to maximize your product value. No matter
whether you are a beginner or get trucked in trouble, You'll get a
satisfied solution here.
