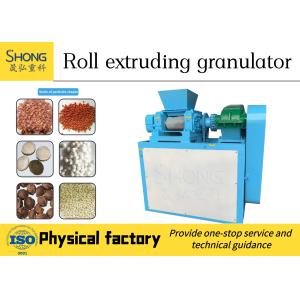

Double roller pressing fertilizer granulator machine Granulation
plant machine
Brief introduction of double roller pressing fertilizer granulator
machine
1) Double roller pressing fertilizer granulator machine adopts
no-drying process palletizing at normal temperature and once
forming.
2) It can produce 2-6mm irregular pellets, φ3.8-φ10mm oblate
pellets and all kinds of slice products.
3) It is a multi purpose machine and widely used to pelletize the
powder materials of fertilizers, medicine,chemicals and so on,
especially suitable for the production of palletized fertilizers
such as ammonium bicarbonate,carbamide, ammonium chloride ,
ammonium sulfate, potassium chloride, potassium sulfate, salt,
binary,ternary compound fertilizers(Nutrient content 2553), blended
fertilizers and so on.
4)The complete sets of the equipment are in compact layout process,
scientific and rational, leading technology,energy saving,
environmental protection without waste emissions, operation
stability, and easy maintenance.
Technical Parameters
Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
Capacity | 1-1.5 | 1.5-2.5 | 2.5-3.5 | 3.5-4.5 | 1-2 | 1.5-2.5 |
Power | 15Kw | 18.5Kw | 30Kw | 45Kw | 15Kw | 18.5Kw |
Press Roller | Φ150×22O | Φ150×30O | Φ186×30O | Φ300×30O | Φ150×22O | Φ150×30O |
Feed Size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
Product Size | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ20 | Φ2.5~Φ10 | Φ2.5~Φ10 |
Speed Reducer | ZQH350 | ZQH400 | ZQH400 | ZQH500 |
|
|
Material Mositure | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |
Features of Double Roller Pressing Fertilizer Granulator Machine
1). Room temperature can be directly material compressing the
powder partly, not only to production of urea ammonium bicarbonate,
chloride, ammonia, potassium chloride and other materials for the
multeity compound fertilizer
2). And also applies to rare earth magnetic fertilizer granulation,
without drying Equipment, particle high intensity. Production
process with the right materials roller friction coefficient, low
temperature.low energy consumption, pollution free.
3). Meanwhile in order to meet user needs, reach small investment
and quick benefit, the plant also for users equipped with mixers,
mills Bucket Elevator, pole and other fertilizer production of
complete sets of equipment.
The double roller granulator/Rollers pressing granulator machine
instruction:
1.No drying technology, normal temperature granulating, once
forming.
2,Low investment, quick profit, good economic returns, etc.
3,Combine granulating, forming, screening into one machine, making
beautiful appearance granules, easy operation and low energy
consumption, etc.
4,The main components, such as the roller body, is made of a new
type of metal which is anticorrosive,wearable and impact
resistance.
5,Especially, YHDZJ-II not only has the above features, but also
upgrades its rack. The bearing frame body is made of high quality
and anticorrosive cast materials, so that it become more stable and
extends the roller’s service life.Double Roller Press Granulator
Machinery.
6,The Power Transmission part adopts dual-input transfer mode, not
only to improve the power input ratio, and also to ensure the
transmission gear lubrication and sealing performance.
7,The machine has compact structure, good stability, good sealing,
low noise, easy operation and maintenance, etc. The new machine has
won the users praise after coming into the market.
8,Wide adaptability for raw materials, such as fertilizer, feed,
chemical industry, and especially good adaptability for rare
earth,metallurgy, coal, biologics environmental protection. To some
extent, it fills the gap and leading the domestic advanced level.
On the other hand, it is also the promotion of environmental
projects.
