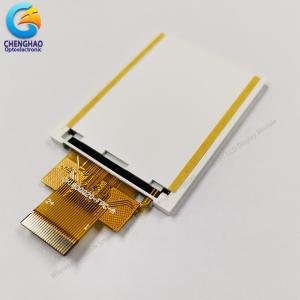

1.77 Inch 24 Pin Tft Lcd Modules High Quality 8 Bit 8080-Series
System Interface Lcd Screens
1. Specification
| Display type | TFT LCD |
| Backlight tube | 4pcs White LED |
| Brightness (cd/m²) | 500 |
| Backlight life (h) | 20,000 |
| Contrast | 500:1 |
| Viewing angle ( L/R/T/B) | 6:00 |
2. Description
Type: Tft Lcd
Screen: 1.77" 8-bit 8080-series system interface
Display area: 28.032(W)×35.04(H) mm
Size: 34.7(W)×46.7(H)×3.5(T) mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ST7735
Backlight: 4pcs White LED
Viewing direction: 6 o'clock
Color depth: 262K/65K/16.7M (optional)
Resolution (dots): 128RGB*160 Dots
5V compatible, use with 3.2V
3. Drawings
Notes:
(1) Display Type : 1.77 inch Tft
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7735
(4) Polarizer Mode : Transmissive/
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
5. Our Service
1. And if it is necessary for you to have technical support in the
process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before
shipment, we will guarantee that the products will be done the
aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in
advance, and the upgrading product can be perfectly compatible with
the old ones.
4. The warranty period of the product is 12 months.
