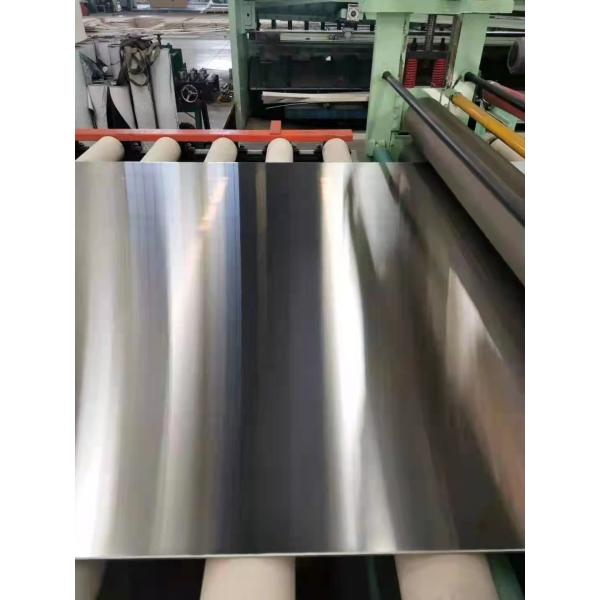

443 Stainless Steel Sheet
443 stainless steel sheet is a kind of super ferritic stainless
steel with high mechanical properties and corrosion resistance. It
is now generally used to replace 304, and its rust resistance and
processing performance are equivalent to 304. At present, it is
fully promoted in the fields of electrical appliances, utensils,
kitchen equipment, elevators, oven production and other fields. 443
stainless steel improves corrosion resistance by increasing Cr,
reducing C, and adding Ti. The pitting corrosion resistance is
improved. Ti element preferentially forms C compounds, which
inhibits the enrichment of C in the grain boundary of stainless
steel under heated conditions, improves the thermal service life of
stainless steel, and improves the intergranular corrosion
resistance of stainless steel and the heat stability.
AISI 434 Stainless Steel Sheet ASTM A240 434 Stainless Steel 0.4 -
3.0mm SS Sheet
| Products | 434 stainless steel sheet | Thickness | 0.4 - 3.0mm |
| Surface | 2B | Size | 1219*2438mm 1000*2000mm |
| Brand | TISCO | Same grade | 1.4113 |
AISI 434 stainless steel is a ferritic stainless steel formulated
for primary forming into wrought products. Cited properties are
appropriate for the annealed condition. 434 is the AISI designation
for this material. S43400 is the UNS number. Additionally, the
British Standard (BS) designation is 434S19.
The graph bars on the material properties cards below compare AISI
434 stainless steel to: wrought ferritic stainless steels (top),
all iron alloys (middle), and the entire database (bottom). A full
bar means this is the highest value in the relevant set. A
half-full bar means it's 50% of the highest, and so on.
chemical composition of grade 434 stainless steel.
| Element | C | Si | Mn | P | S | Cr | Mo |
| % | 0.12 | 1 | 1 | 0.04 | 0.03 | 16 | 1 |
Stainless steel SUS434 equal material :
434,AISI 434,S43400,X6CrMo17-1,material 1.4113, 1Cr17Mo, W.Nr. 434
1.SUS434 stainless steel main description:
SUS434 is a ferritic stainless steel.SUS434 stainless steel
containing 12% ~ 30% chromium.Its corrosion resistance, toughness
and weldability with chromium content increases with the increase
of chloride stress corrosion resistance is superior to other types
of stainless steel.
AISI434 Stainless steel mechanical property:
Ensile strength of sigma b (MPa) : p. 450
Conditions to yield strength sigma (0.2 MPa) : p. 205
Elongation delta (%) : p. 22
Reduction of area bits (%) : 60 or higher
Hardness: 183 hb or less
Forging
Grade 434 stainless steel can be forged at 1094 -1149°C
(2000-2100°F) after thorough soaking.
Annealing
Grade 434 stainless steel is annealed by soaking at 788 - 872°C
(1450-1600°F) followed by cooling in air.
Hardening
Grade 434 stainless steel does not react to heat treatment.
Applications
Grade 434 stainless steel is used in automotive trim applications
and other exterior environments.
