    Breakout Tight Buffer Optical Cable 12F SM G652D LSZH Black

    Ask Lasest Price
    Brand Name : HICORPWELL
    Model Number : 12F SM G652D LSZH black Breakout Tight Buffer Optical Cable
    Certification : IEC 60794-2-10/11
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 5000km Per Week
    • Product Details
    • Company Profile

    Breakout Tight Buffer Optical Cable 12F SM G652D LSZH Black

    Breakout Tight Buffer Optical Cable 12F SM G652D LSZH black

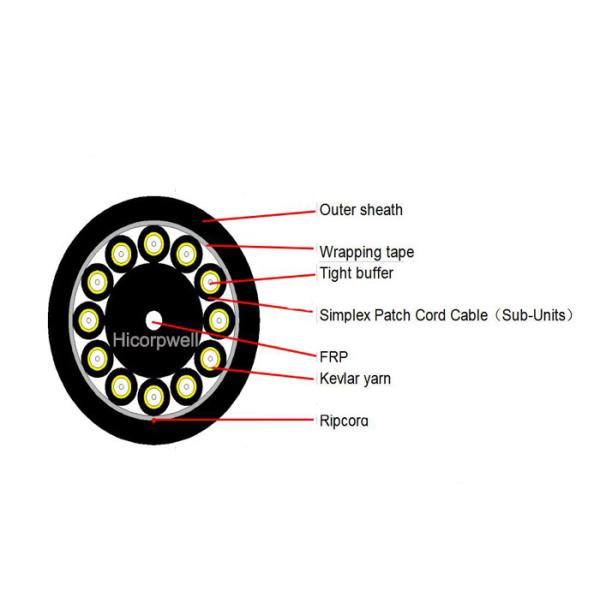

    12F SM G652D LSZH black Breakout Tight Buffer Optical Cable Construction Details
    ItemsDescription
    Number of fiber12F
    Fiber typeG652D
    Tight BuffermaterialPVC
    diameter0.9±0.05mm
    Central strength membermaterialFRP
    Strength membermaterialKevlar yarn
    Sub-UnitsmaterialLSZH
    colorBlack
    diameter1.9±0.1mm
    Outer sheathmaterialLSZH-UV
    colorBlack
    diameter12.5±0.5mm
    12F SM G652D LSZH black Breakout Tight Buffer Optical Cable Cable weight150KG
    Installation Temperature range(℃)-10+60
    Operation and transport temperature(℃)-20+70
    Min Bending Radius(mm)Long term10D
    Min Bending
    Radius(mm)
    Short term20D
    Min allowable
    Tensile Strength(N)
    Long term200
    Min allowable
    Tensile Strength(N)
    Short term500
    Crush Load (N/100mm)Long term500
    Crush Load (N/100mm)short term1000
    Fiber characteristic
    CharacteristicsConditionsSpecified ValuesUnit
    attenuation1310nm≤0.4dB/KM
    1550nm≤0.3dB/KM
    attenuation vs.Wavelength
    Max. αdifference
    1285-1330nm≤0.03dB/KM
    1525-1575nm≤0.02dB/KM
    Zero dispersion wavelength1312±10nm
    Zero dispersion slope≤0.090ps/nm².km
    PMD-
    Maximum Individual Fiber≤0.2
    Link Design Value (M=20,Q=0.01%)≤0.1
    Typical value0.04
    Cable cutoff wavelength λ∝≤1260nm
    Mode field diameter (MFD)1310nm9.2±0.4um
    1550nm10.4±0.5um
    Effective group index of refraction1310nm1.466-
    1550nm1.467-
    Point discontinuities1310nm≤0.05dB
    1550nm≤0.05dB
    12F SM G652D LSZH black Breakout Tight Buffer Optical Cable Geometrical Characteristics
    Cladding diameter124.8±0.7um
    Cladding non-circularity≤0.7%
    Coating diameter254±5um
    Coating-cladding concentricity error≤12.0um
    Coating non-circularity≤6.0%
    Core-cladding concentricity error≤0.5um
    Curl (radius)≥4m
