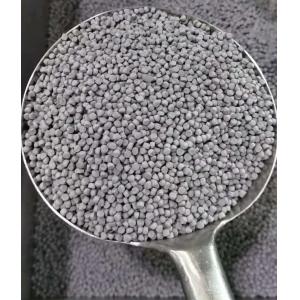

KDM MIM Feedstock 4J50 Iron Nickel Alloy
Product Description:The Gas-Water atomized powder is based on the nitric acid catalytic
debinding system and can be used directly for injection molding
material granules to produce 4J50 iron nickel alloy sintering parts.Product Standard:
| Item | Unit | Specification | Test method |
| Melt flow index (MFI) | g/10min | 1000±500 | ISO1133 |
| Green part density | g/cm3 | 5.75±0.03 | ISO3369 |
| Sintering density | g/cm3 | >7.9 | ISO3369 |
Standard Processing:Standard injection molding machine for thermoplastic resins, based on the nitric acid catalytic debinding system.
Injection Molding:
Injection temperature | Zone 1 | Zone 2 | Zone 3 | Nozzle |
| 180℃ | 185℃ | 190℃ | 195℃ | |
| Mold temperature | 90 ~ 125 ℃ | |||
| Screw speed | 50 r/min | |||
| Injection speed | 10 cm3/s | |||
| Molding pressure | 900 bar | |||
| Holding pressure | 900 bar | |||
| Holding time | 0.1~3 s | |||





|
