Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge
Emergency Equipment
- General introduction of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m
HZ100 Power Pontoon Bridge Emergency Equipment

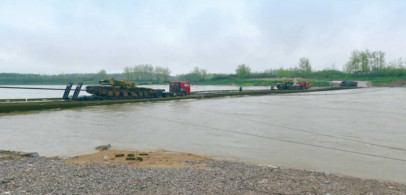

Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100 Power Pontoon Bridge
Emergency Equipment is a kind of heavy pontoon equipment. It is
suitable for constructing floating bridges MLC80 to ensure tracked
load 72t or wheel load less than 83t to cross over the rivers whose
current velocity is less than 2.5m/s. It can also be used as
ferrying rafts of 20t, 40t, 65t, and 85t.
A complete set of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m HZ100
Power Pontoon Bridge Emergency Equipment consists of 8 interior
bays (each interior bay is equipped with 2 x OBMs), 2 ramp bays, 10
transport vehicles and auxiliary equipment.
- MAIN TECHNICAL DATA of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m
HZ100 Power Pontoon Bridge Emergency Equipment
Main size of the pontoon body
- Width 8.3m
- Carriageway width 5 m
- Pontoon shape depth 0.8m
Design Load MLC80
- Tracked load 72t
- Wheel load 83t
Available velocity of flow
- Vehicle loading 2.5m/s
- Bridge erection 2.5m/s
- Ferry with full load 2.5m/s
Specifications for Power Pontoon Bridge |
|
Floating bridge |
|
Length of one complete set | 104m |
Load capacity | 72(tracked load), 83t(axle load) |
Roadway width | 5m |
Current velocity | ≤3.0m/s |
Length of a single pontoon unit | 10m |
Ramp Height | not less than 3m |
Transport vehicle of of Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m
HZ100 Power Pontoon Bridge Emergency Equipment
Length Of One Complete Set Loaded Interior Bay (L×W×H) ≤13m×3.5m×4m
HZ100 Power Pontoon Bridge Emergency Equipment Transport vehicle is
refitted by 8×8 wheeled cross-country truck, with turning rack,
mobile platform, stable support leg, hanger frame, hydraulic system
and electrical system on it.
The transport vehicle is used to fold, load and transport interior
and shore bays as well as to transport and erect gangplank.
Transport vehicle performance data
| Items | Data |
| No load (L×W×H) | ≤12m×3.4m×3.1m |
| Loaded interior bay (L×W×H) | ≤13m×3.5m×4m |
| Loaded shore bay (L×W×H) | ≤13m×3.5m×4m |
| Chassis vehicle | 8×8-wheel country-cross truck |
| Total weight of cross-country trucks | ≯31.5t |
| Maximal speed | ≮85km/h |
| Maximal Gradient | ≮40% |
This is China Harzone Industry Corp.,Ltd., our company was founded
in 1967,and we are a member of China State Shipbuilding Corpration
Limited(CSSC),which is the largest central state-owned shipbuilding
and military enterprise in China. As the pioneer in the research
and manufacturing of emergency and rescue equipment in China,
Harzone is the first company from the emergency industry listed in
the stock exchange.
China Harzone dedicates itself to the following fields:
Design and manufacturing of military bridges and emergency rescue
equipment
Design,manufacturing and installation of various kinds of steel
bridges and steel structures
Research and re-fitting of special-purpose vehicles and equipment
Engineering contracting
Import and Export trading business
Harzone products have been exported to more than 40 countries and
regions around the world and own a good reputation from
international client.Moreover,China Harzone has been listed in the
state emergency purchasing system and also the largest qualified
rescue machinery supplier of the United Nations Emergency
Procurement.
Please feel free to contact with us if you have any question.
