BE-CU Alloy 25 Beryllium Copper Metal Strips With TD04 (Hard) State
For Contract Springs
Product Normal Description:
Product Name: Beryllium copper metal strips
Grade: BE-CU Alloy 25
Standard: ASTM B194, SAE J463, J461
Product Specification: 0.05mmx50mm, 0.05mmx100mm,0.05mmx150mm
State: H(TD04)
Typical Application: used for microswitch production
Product Brand: CUBERYLLIUM®
Applications of BE-CU Alloy 25 Beryllium Copper Metal Strips:
C17200 likewise displays extraordinary protection from stress
unwinding at raised temperatures.
Beryllium copper coil, beryllium copper strip are used in
fasteners, electric industry, pump, springs, electrochemical
industry etc.
We provide high-quality beryllium copper strip with quality
assurance.
Chemical Composition of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
| CuBeryllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip |
| Designation | Description | Tensile Strength
(Mpa) | Yield Strength 0.2% offset | Elongation Percent | HARDNESS
(HV) | HARDNESS
Rockwell
B or C Scale | Electrical Conductivity
(% IACS) |
| A | TB00 | Solution Annealed | 410～530 | 190～380 | 35~60 | <130 | 45~78HRB | 15～19 |
| 1/2 H | TD02 | Half Hard | 580～690 | 510～660 | 12~30 | 180~220 | 88~96HRB | 15～19 |
| H | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15～19 |
| HM | TM04 |
Mill hardened | 930～1040 | 750～940 | 9～20 | 270～325 | 28～35HRC | 17～28 |
| SHM | TM05 | 1030～1110 | 860～970 | 9～18 | 295～350 | 31～37HRC | 17～28 |
| XHM | TM06 | 1060～1210 | 930～1180 | 4～15 | 300～360 | 32～38HRC | 17～28 |
Applications of C17200 (CuBe2) Alloy (CUBERYLLIUM ®-172):
| Product Category | Product | Reason Category | Reason |
| Industrial | Housings for Instruments | Corrosion Resistance | Corrosion Resistance |
| Housings for Instruments | Machining Characteristics | Machinability |
| Housings for Instruments | Magnetic Properties | Non-Magnetic |
| Housings for Instruments | Mechanical Properties | High Strength |
| Non Sparking Safety Tools | Mechanical Properties | Very High Strength |
| Non Sparking Safety Tools | Non-Sparking | Non-Sparking |
Standard Tolerance of CuBe2 Strip C17200 (CUBERYLLIUM ®-172):
| Tolerance Sheet |
| (MM) |
Strip
Thickness | CuBeryllium®
Standard Tolerance |
| over | incl. | plus or minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. |

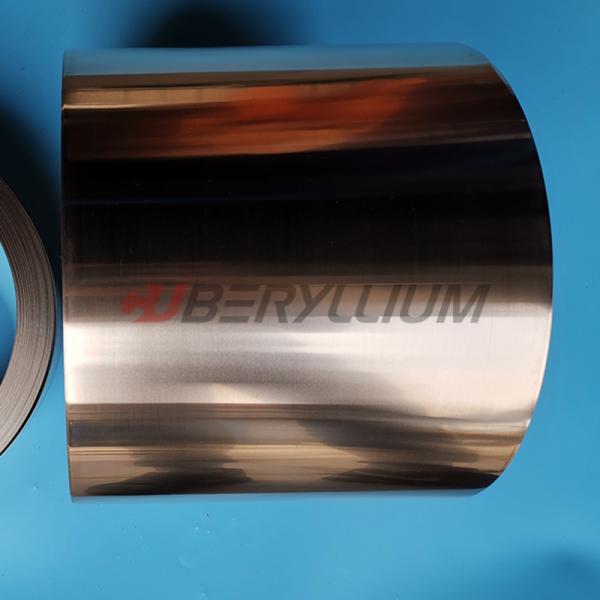

Product Photos:
FAQ:
Q1: Could you produce Beryllium Copper strip by Mill Hardened
process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06)
XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous
Furnace.
3: Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation,
Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the
amount is different.
