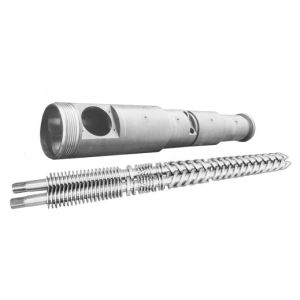

    Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder

    Ask Lasest Price
    Brand Name : BLM-IV-1
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1000 per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder


    Bimetallic / Nitrided Conical Twin Screw Barrel For Extruder
    1. Descriptions


    Step 1 - Rust Preventing Oil

    Step 2 - Casting Film Wrapped

    Step 3 - Polywooden Case



    2. Technical Specification


    Design DetailsScrew
    I TYPE:inside is water/oil cooling system
    II TYPE:outside is oil cooling system
    Barrel
    I TYPE:outside is air cooling system
    II TYPE:out side is copper pipe around cooling system
    AccessoriesStop ring+washers to adjust the space between screw and barrel
    Technical SpecificationMaterial:High quality 38CrMoAlA
    Process:Advanced nitriding & bimetallic process
    Hardness After Hardening & Tempering:HB280-320
    Nitrided Hardness:HV900-1000
    Nitrided Case Depth:0.45-0.8mm
    Nitrided Brittleness:Less than Grade 2
    Surface Roughness:Ra 0.4
    Screw Straightness:0.015mm
    Alloy Hardness:HRC 50-65
    Alloy Depth:0.8-2.0mm
    MOQ1 set(1 pair of screws and 1 piece barrel)
    TypeConcial Twin Screw and Barrel


    3. Brief Application

    Application: PVC

    Production output:130kg/h~150kh/h
    Lifetime: 20,000 hours

    Old order from: West Europe,East Europe,South America,South Africa,Middle


    4. Features:

    Accrurate size

    High capacity design

    Wear resisting material

    Easy maintenance



    5. Screw&barrel use material

    Raw materialThe finished product processing requirements
    38CrMoAIA, SACM645Nitriding treatment
    Cr12MoV, Cr12,Alloy steel
    38CrMoAIA, SACM645, 40Cr, AISI4140,
    42CrMo
    Alloy steel
    4Cr5MoSiV1,SKD-61,SKD-11Bimetallic of the inner hole centrifugal casting
    GHII3nature hard after high temperature
