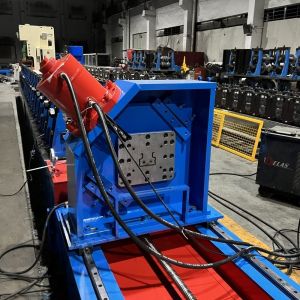

90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

    Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers

    Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers
    • Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers
    • Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers
    • Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers
    • Buy cheap 90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine from wholesalers

    90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SS-RS
    Certification : CE.SGS.ISO
    Price : USD65000-85000 Per Set
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : Shipped in 90 days after payment
    • Product Details
    • Company Profile

    90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

    90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine


    Technical Data:
    Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
    Working Speed: 12-15 meters / min
    Forming Steps: 18 stations
    Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
    Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
    Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
    Main Power with reducer: 11KW WH Chinese Famous
    Cutting: Hydraulic Cutting Cr12mov
    Material of Cutting Knife: Cr12Mov, Quench HRC58-62
    Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
    The whole machine is controlled by industry computer-PLC.
    PLC--Panasonic, Japan English and Chinese Language
    Touch Screen--Panasonic Japan
    Encoder--Omron, Japan
    Electric parts--Schneider
    Cutting holder: straight cutting by 3 pieces of blades
    Machine List:
    S.N
    Equipment name
    Quantity
    1
    3T hydraulic un-coiler
    1 set
    2
    Leveling device 400mm
    1 set
    3
    Servo feeding device 400mm
    1 unit
    4
    Press machineJH21-80
    1 unit
    5
    Main roll forming machine
    1 set
    6
    Cutting holder
    1 set
    7
    Hydraulic station
    1 set
    8
    Control system ( including control box)
    1 set
    9
    Out tables
    2 units
    10
    Spare parts
    1 package
    11
    Cutting dies
    1 set
    12
    Punching die set
    1 set

    Profile Drawing

    Machine Shows



    Application


    Main Features

    1) Easy in installation and maintenance.

    2) Hardened structural steel and components provide long life and safe operational stability.

    3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

    4) Running in an automation, high durability and stability.

    5) Compact design, meet custom demands.
