Plastic Making New Generation Mineral Water Bottle Blow Molding Machine

Plastic making new generation hot sale mineral water bottle blow molding machine

Products Description

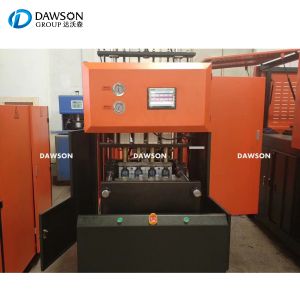

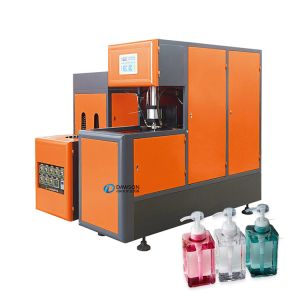

Semi Automatic PET Bottle Blow Molding Machine

l. Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.

2. High responsiveness pneumatic components,action timely and precisely.

3. Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation.

4. Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion

Technical Parameters

Main machine (blower + oven)	Item	YC-2L-4
Product Spec	Max. product volume(L/cav)	2L
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	4
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	2600-2800(500ml bottle)
	Machine size(LxWxH)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.35*0.55*1.15
	Oven weight (KG)	300

Machine Advantages

Q Series PET Bottle Blowing Machine Description

PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

	Semi-auto blow molding machine Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage companies and daily chemical product companies.
infrared lamp heating Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.

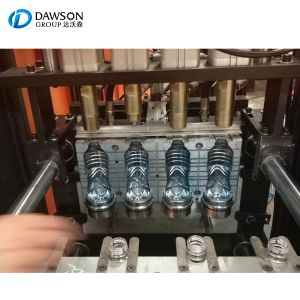

	Specially designed high rigidity composite mold structure Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid response, long working hours , stable performance,ensure stable operation.

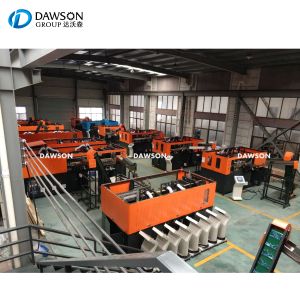

Professional Workshop

Our Professional PET Blow Molding Machine Workshop...

Applications

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine, blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,

customers from more than 45 countries, we provide complete solution for your plastic industry

business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
