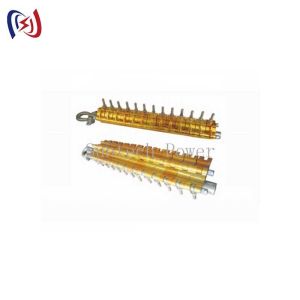

    Multi-segment Type Conductor Wire Grip Professional Holding Device For Transmission Line Work

    Ask Lasest Price
    Brand Name : Suntech Tower
    Model Number : SK35DP1
    Certification : ISO, CE
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 8000 PCS/Month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Multi-segment Type Conductor Wire Grip Professional Holding Device For Transmission Line Work

    ​Multi-segment Type Conductor Wire Grip Professional Holding Device For Transmission Line Work


    Core Design Features​

    • ​​Modular segmented jaw system​​ with independent pressure adjustment for each segment
    • ​​Forged alloy steel construction​​ (4140 grade) with zinc-nickel coating for corrosion resistance
    • ​​Working Load Limit (WLL):​​ 10-100kN (configurable based on segment count)
    • ​​Compatible with 10-50mm diameter conductors​​ (ACSR/AAAC/ACCC types)
    • ​​Interchangeable jaw inserts​​ for different conductor types (3 standard sets included)
    • ​​Manual tension limiter​​ via calibrated shear pins (fails at 150% WLL)


    ​​Operational Advantages​
    ✔ ​​Adaptive grip pressure​​ - each segment adjusts independently to conductor shape
    ✔ ​​50% faster installation​​ vs traditional full-wrap grips
    ✔ ​​Zero conductor deformation​​ with optimized pressure distribution
    ✔ ​​Corrosion-resistant​​ (ISO 9227 C5-M class for coastal/industrial areas)
    ✔ ​​Quick-change segment system​​ (tool-free replacement in <2 minutes)


    ​​Safety Certifications​
    ✓ ​​IEEE 524​​ conductor installation standard compliance
    ✓ ​​OSHA 1910.269​​ live-line work certified
    ✓ ​​EN 13414-1:2020​​ dynamic load testing
    ✓ ​​Non-sparking bronze segments​​ for explosive atmospheres


    ​​Maintenance Specifications​
    • ​​Self-lubricating bearing system​​ (10,000-hour service life)
    • ​​Field-replaceable wear components​​ (standard wrench set required)
    • ​​5000-cycle​​ lifespan between major overhauls
    • ​​UV-resistant markings​​ for load rating visibility


    ​​Typical Applications​
    ➔ ​​Bundled conductor stringing (4x/6x/8x)​​
    ➔ ​​Transposition tower section pulls​​
    ➔ ​​Dead-end termination of large diameter conductors​​
    ➔ ​​River crossing conductor installations​​
    ➔ ​​Emergency conductor repair operations​

    ​​Optional Accessories​

    • ​​Segment alignment laser guide​​
    • ​​Load monitoring strain gauge kit​​
    • ​​Arctic-grade lubrication package (-50°C)​


    Item numberModelRated Load(KN)

    Applicable

    Conductor Diameter(MM)

    (N.m)Tightening Torque

    (KG)

    Weight

    13230LSK35DP2120Φ35(MAX)15020
    13231LSK50DP2150Φ50(MAX)15026
