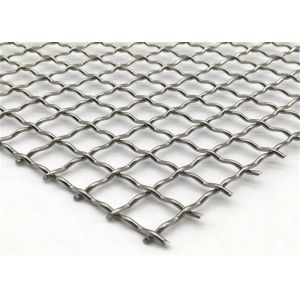

High Strength Steel Pre Crimped Mesh Woven Wire 3mm Thick

3mm thick high strength steel wire pre-crimped woven wire mesh

Pre-crimped woven wire mesh​ description:

Pre-crimped woven wire mesh​ specification list:

Pre-crimped woven wire mesh​ crimp styles:
(1).Plain Crimp:
It is a simple zigzag style of crimping where warp and fill wires intersect at every available pocket. With
Pre-Crimped material, the Plain Crimp is most common when Mesh to Diameter (MD) Ratios are 4:1 or less.
This un-tooled look produces a smooth and subtle pattern.


(2).Lock Crimp:
It is a more modern and very versatile crimp style that has been largely overlooked for architectural
applications.Unlike Plain Crimp, Lock Crimp is characterized by straight sections of woven wire
connected by a well-defined ‘bump’ at the wire intersections. Lock Crimp yields material with superb
dimensional stability and has a clean look that many designers find visually appealing. Lock Crimp
works well at practically any MD ratio of 4:1 and greater.

(3).Flat top crimp:
It is really a modified version of Lock Crimp, except that all the crimping is offset to one side of the material.
The result is a smooth plane in which all of the wire surfaces are flush with one another to give a flat
appearance to the front of a Flat Top piece. The back side shows crimps approximately twice the height
of a Lock Crimp. Originally developed to present a smooth surface to material flow, or as a backer screen
for finer mesh, Flat Top is also used extensively in architectural applications.


(4).Intercrimp:
While not really a fundamental crimp style, we choose to list it with the other crimp styles because of its
widespread use. Intercrimp is simply Plain Crimp except that wire intersections occur only at every 3rd, 5th,
7th intersection, etc. This type of woven wire weave is practical only at MD ratios of 6:1 or more, and is
best suited for ratios of 8:1 or more. We designate this style of weave as I3, I5, I7, etc.

(5).Triple Shute crimp:
It is a specialty crimp style that is generally used in conjunction with another crimp style. It consists of
relatively long sections of straight wire connected by groupings of three Plain Crimp pockets of woven
wire. The resulting material has rectangular openings of very high aspect ratio. Developed originally
as a non-blinding sizing product, it also has interesting architectural properties.

(6).Rigid Cable crimp:
It is a variant of the triple shoot crimp style, but instead of having the clusters of three closely spaced wires
separated by a small space, Rigid Cable has its clusters of wires (generally 2, 3, or 4) spaced tightly together
with no gaps between adjacent wires. While some manufacturers produce this style of material by simply
pressing groups of wires together,Banker Wire places special crimps in the surface of the wire.This technique
assures absolute repeatability in the mesh spacing and eliminates any problems associated with cumulative
pitch variation. Cumulative pitch variation can result in aesthetic problems when attempting to align multiple
panels.

(7).The Helix crimp:
It is a new crimp style with enormous design potential. For years, the woven wire mesh industry has been
limited to making squares, rectangles, and diamonds. Banker Wire introduces a design that represents a
whole new category of wire mesh construction. Naturally flowing circular shaped openings are created
when intersecting the helical wires. The smooth lines created by the spiral shaped wires give this mesh
a soft and tranquil look and feel. The helix can also be combined with any other fundamental crimp style,
creating a truly unique woven wire mesh pattern.

(8).Twill crimp:
Exploring further into traditional weave styles, the classic twill style weave for architectural purposes.
Traditionally, the Twill style weave allows for a tighter mesh to diameter ratio which reduces the need
to form the wire beyond its physical limitations. Four independent heddle frames on the loom allow
for complex wire positioning that create a number of parallel diagonal pattern configurations.
Pre-crimping a twill style wire mesh allows complete control of the unique visual detail, emphasizing
the herringbone pattern in a large scale woven wire mesh.

Pre-crimped woven wire mesh​ application:

• water treatment,
• mining, construction,
• safety fence
• food processing
• filtering and screening
• architectural
• industrial design applications

Show Pre-crimped woven wire mesh​ pictures:
