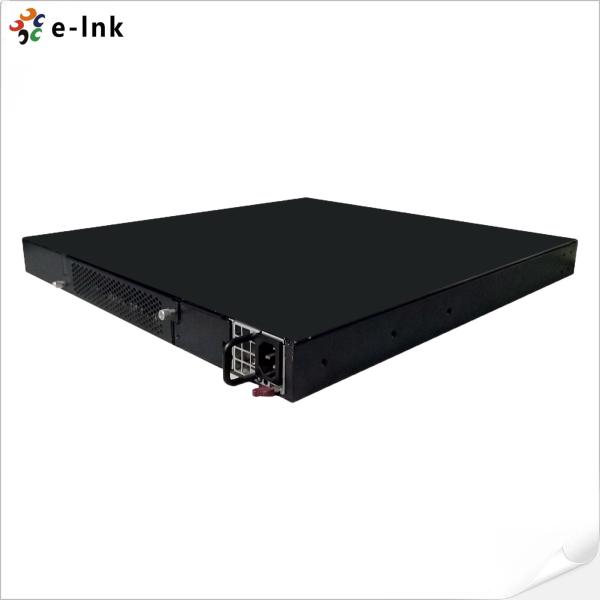

Managed Fiber Switch 24-Ports 10G SFP 4-Ports Gigabit Combo Ethernet Switch
Managed Fiber Switch Advantages
► With 490Gbps backplane bandwidth, the industry the highest
performance (1U TOR)
► The layer 3 switching hardware routing, wire speed packet rate
reached 364.56Mpps, L2 / L3 forward full speed
► 24 10Gb optical ports, the highest density (1U TOR), meet the
demand of high-density 10G server access
► Has 4 1G photoelectric reuse ports, industry the only high
density 10G switches provide more 1G port access
10G SFP Fiber Switch Technical Indexes
Fixed port | 24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports |
Console port | 1 |
OOB management port | 1 |
Backplane bandwidth | 490Gbps |
Packet forwarding rate | 364.56Mpps |
Jumbo frames | 9216 bytes |
Transfer mode | Support store-forward mode and cut-through mode |
IPv4/IPv6 route | 6k/8k |
MAC address table | 128K |
Packet Buffer | 9MB |
VLAN ID | 4K |
Flash | 32MB |
Memory | 1GB DDR3 SDRAM |
CPU | PPC Dual-core 800MHz |
Enterprise Fiber Switch Overview
LNK-XS2404 Series Switches are 10Gb Data Center Switch. Provide
high exchange capacity, the capacity of support ACL function based
on three or four layers. Perfect safety control strategy and the
CPU protection strategy (CPU protect policy) to improve the fault
tolerance, ensure the stable operation of the network and link
load. 6600 Series Switches adopts modular design, Can be deployed
in the metropolitan area network, and provides a few last 1 km
technological to gather and core data exchange. To provide enough
bandwidth, the user can accord to demand to choose the appropriate
10G port in a flexible response network requirement.
24-Port Managed Fiber Switch Ordering Information
Model | Description |
LNK-XS2404 | 24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed
Ethernet Fiber Switch |
