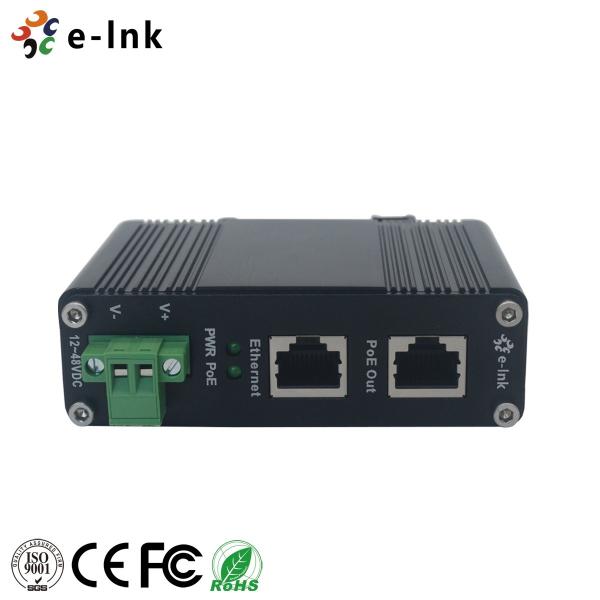

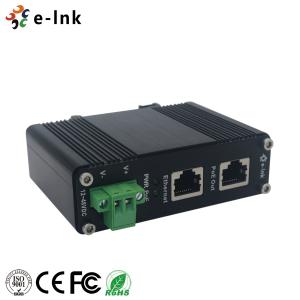

12~48VDC Power Input Industrial Gigabit PoE+ Injector
DIN-Rail & Wall-mount Industrial Gigabit PoE+ Injector Adapter,
12~48V
12~48VDC Power Input Industrial Gigabit PoE+ Injector Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet
Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing
Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating
temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview
The LNK-INJ301-30 product is a Hardened Gigabit High Power PoE
Injector allows you to connect the
IEEE 802.3 af/at PoE device such as camera and access point with a
non PoE LAN switch within the
distance of 100m. Both the Ethernet port (to switch) and the PoE
Out port (to PoE device) support 10/
100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out
port is also compliant with IEEE
802.3 at. LNK-INJ301-30 provides an integrated power solution with
a wide range voltage of 12~48VDC
for high availability applications.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
| Processing Type: | Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 120W Max. |
| Power over Ethernet: |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: | RJ45 |
| Power Pin Assignment | Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
| PoE Budget: | Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
Application
Ordering Infornation
| Model | Description |
| LNK-INJ301-30 | 12~48VDC Power Input Industrial Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is
included. |
| Power Options | ► Power Supply is to be purchased separately |
