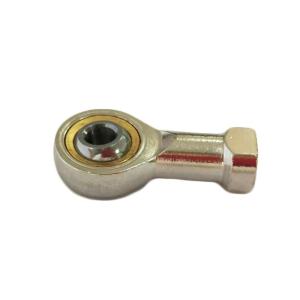

    M6*1 Ball Bearing Rod End SI6T/K Nickel Plated Rod End Joint Bearing With Size 6*20*40*9mm

    Ask Lasest Price
    Brand Name : SFT
    Model Number : SI6T/K
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 20-45DAYS
    • Product Details
    • Company Profile

    M6*1 Ball Bearing Rod End SI6T/K Nickel Plated Rod End Joint Bearing With Size 6*20*40*9mm

    Nickel-plated Rod End Joint Bearing SI6T/K ​

    Product Introduction:

    Spherical roller bearing is a rolling-element bearing that permits rotation with low friction,and permits angular misalignment. Typically spherical roller bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Most spherical roller bearing is designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load.

    Feature:

    1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
    2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
    3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
    4. Advanced Technology - patented Molded Oil lubrication system is also available.
    5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available.

    Application:
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Other

    supply all kinds of rod end bearings with all dimensions as customers require, such as: SI...E, SI...ES, SA...E, SA...ES, SI...T/K, SA...T/K, SI...B/K, SA...B/K. GIR...UK, GAR...UK, PHS...., POS...., SIZP...S, SAZP...S, SIZJ...., SAZJ...., GIHR...DO, GIHR...K...DO, SIQG...ES, GK...DO, GF...DO, ect. The material of the bearings can be steel/steel, steel/PTFE bronze composite, steel/bronze

    Bearing NO Diamensions(mm) Load rating a Weight(kg)
    C1 d B dk d2 max G6h h L1 MIN L2MAX R15 MIN a Dynamic Static
    SA5T/K 6 5 8 11.11 18 M5*0.8 33 19 42 0.3 13 5.7 6.0 13 0.013
    SA6T/K 6.75 6 9 12.7 20 M6*1 36 21 46 0.3 13 7.2 7.65 13 0.02
    SA8T/K 9 8 12 15.875 24 M8*1.25 42 25 54 0.3 14 11.6 12.9 14 0.038
    SA10T/K 10.5 10 14 19.05 28 M10*1.5 48 28 62 0.3 13 14.5 18 14 0.055
    SA12T/K 12 12 16 22.225 32 M12*1.75 54 32 70 0.3 13 17 24 13 0.85
    SA14T/K 13.5 14 19 25.4 36 M14*2 60 36 78 0.3 16 24 31 16 0.14
    SA16T/K 15 16 21 28.575 42 M16*2 66 37 87 0.3 15 28.5 39 15 0.21
    SA18T/K 16.5 18 23 31.75 44 M18*1.5 72 41 94 0.3 15 42.5 47.5 15 0.29
    SA20T/K 18 20 25 34.925 50 M20*1.5 78 45 103 0.3 14 42.5 57 15 0.38
    SA22T/K 20 22 28 38.1 54 M22*1.5 84 48 111 0.3 15 57 68 15 0.48
    SA25T/K 22 25 31 42.85 60 M25*2 94 55 124 0.3 15 68 85 15 0.64
    SA28T/K 25 28 35 47.6 66 M28*2 103 62 136 0.3 15 86 107 15 0.8
    SA30T/K 25 30 37 50.8 70 M30*2 110 66 145 0.3 17 88 114 17 1.1
    SA35T/K 28 35 43 57.1 81 M35*3 140 85 180.5 0.3 16 1.64
