    PVC Coated Gjsfjv Distribution Fiber Optic Cable 2 Core Armoured Cable

    Ask Lasest Price
    Model Number : FKCAB-020
    Brand Name : FONGKO
    Price : Negotiatable
    • Product Details
    • Company Profile

    PVC Coated Gjsfjv Distribution Fiber Optic Cable 2 Core Armoured Cable

    Product Description

    Hot Sales Optical Communication Cable De Fibra Optica Gjsfjv Indoor 2 Fiber Armored Fiber Optic Cables

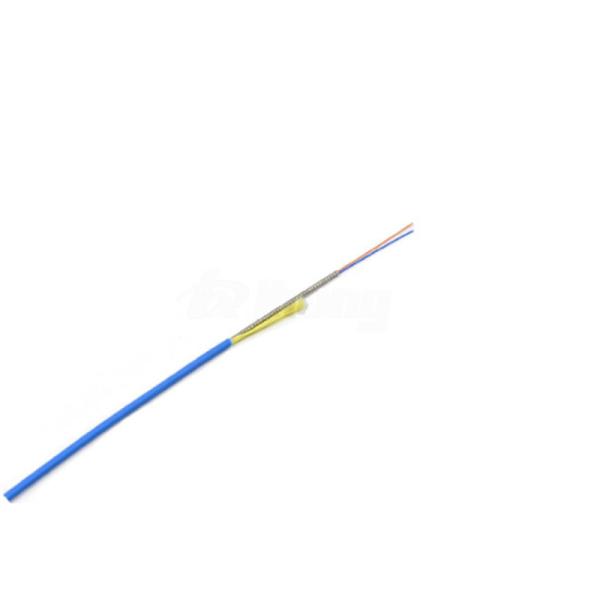

    GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

    Applications:

    Small installation space cabling
    All kinds of connector, Fiber optic pigtails, patch cords.
    Long distance, outdoor/indoor cabling, trunking,etc
    Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
    Indoor cabling,building cabling,LAN, etc
    Backbone network to the equipment in the building

    Features:

    Flame retardant outer sheath provide good safety.2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent. Good mechanical and environmental performance.
    Optical Characteristics
    G.652
    G.655
    50/125μm
    62.5/125μm
    Attenuation (+20℃)
    @850nm
    ≤3.0dB/km
    ≤3.0dB/km
    @1300nm
    ≤1.0dB/km
    ≤1.0dB/km
    @1310nm
    ≤0.36dB/km
    ≤0.36dB/km
    @1550nm
    ≤0.22dB/km
    ≤0.23dB/km
    Bandwidth
    (Class A)
    @850
    ≥500MHZ·km
    ≥500MHZ·km
    @1300
    ≥1000MHZ·km
    ≥600MHZ·km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength λcc
    ≤1260nm
    ≤1480nm
    Technical Parameters

    Cable Type

    Fiber Count

    Tight Diameter
    mm

    Cable Diameter
    mm

    Cable Weight Kg/km

    Tensile Strength Long/Short Term
    N

    Crush Resistance Long/Short Term
    N/100m

    Bending Radius
    Static/Dynamic
    mm
    GJSFJV
    2
    0.6
    3.2
    15
    300/750
    200/1000
    20D/10D
    GJSFJV
    2
    0.9
    4.0
    28
    300/750
    200/1000
    20D/10D
