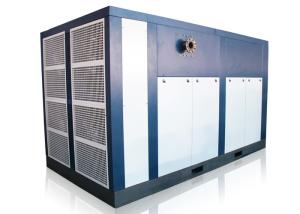

110kw PM VSD Rotary Screw Compressor Direct Drive High Efficiency
Screw Air Compressor
Spray
All are screw-type compressors with modem environmental protection
paint. Its surface machining so many years after the use of
castings can effectively avoid corrosion.
Shell
The modem word processing centers are under the control of the
technical specifications for testing. ’The most advanced machinery
and the use of modem technology and constant monitoring. It applied
to all processing operations. For use on the Company’s compressor
quality certification of the commitments made by providing good
protection.
Shaft sealing device
Equipped with dual wheels metal framework amine fluoride rubber
ring to withstand certain pressures. The formation of the shaft
seal can be the lubricating device. Bush axis of the company’s
exclusive use of my special processing technology. Perfect sealing
performance and long life.
Rotor
Each screw compressor is the heart of the compressor mainframe.
From the latest CNC machine operators of multi-level screw fully
automated manufacturing process and materials used by the higher
minimum guarantee its tolerance. Reliability is stronger. Ground
processing and computer control of the multi-step rotor combine.
100% of the rotor to ensure the accuracy of the profile.
Bearing
To ensure the speed and load-bearing capacity. Using screw
compressor bearing capacity of very high-quality bearings.
Guaranteed longer bearing life.
⊙ Schematics
| 1. Air Filter | 9. Oil Temperature Control Valve |
| 2. Air-in Easing Value | 10. Oil Filter |
| 3. Principal Screw Machine | 11. One-way Shut-off Valve |
| 4. Oil Air Separator | 12. Pressure Gage |
| 5. Oil Air Separating Filter Core | 13. Safety Valve |
| 6. Minimum Pressure Valve | 14. Vent Valve |
| 7. Radiator with Aluminum Alloy Fans | 15. Compressed Air Dry Separator |
| 8. Return Check Valve | 16. Motor |
Specification
| Model Specification | KP110-0.8II |
|
| Displacement/Pressure (M³/Min/Mpa) | 23.81/0.8 |
| Power Kw/ HP | 110KW/150HP |
| Ambient Temperature ℃ | 2℃-45℃ |
| Cooling Mode | Air-Cooling |
| Discharge Temp | ≤Ambint+15℃ |
| Lub Oil Capacity Liter | 42.3L |
| Noise Level Db(A) | 75 |
| Driven Mode | Direct Drive |
| Power V/Ph/Hz | 380V/50Hz |
| Starting Mode | power frequency |
| Dimension mm | 2780*1580*2160 |
| Net Weight kg | 2900 |
| Outlet Diameter inch | RP2-1/2 |
Advantages:
1. High-quality control(ISO 9001-2000/ISO14001/ASME/Energy saving
certificate)
2. Fast Delivery( 10-15 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support
and professional after-sales team)
4. Small order acceptable( Ordering quantity according to your
actual needs)
why choose us
The longer service life of the master machine
The rotor uses an asymmetrical line running at a low speed with the
support of the ball bearings and roller bearings as a result. The
damage and the cost are lowered and the service life is extended.
Some force is counteracted by the axial force generated by the
bevel gear. So the load on the bearings of the master machine is
lowered.
Permanent alignment of the electromotor and the master machine
Different from the strap compressor, the SRC series compressor can
integrate the electromotor with flange, shaft coupling box-gear
box. and the master machine into one in such a way the master
machine and the electrometer are aligned forever in the
transpiration. The SRC series compressors are equipped with an
effective and fully sealed air-cooling electromotor.
FAQ
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.
Q2: What the exact address of your factory?
A2: Our company is located in Zone B, Lianhua County Industrial
Park, Pingxiang City, Jiangxi Province of China
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support
according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your
requirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can deliver the goods within 10 -15 days. Other
electricity or another color we will delivery within 25-30 days.
