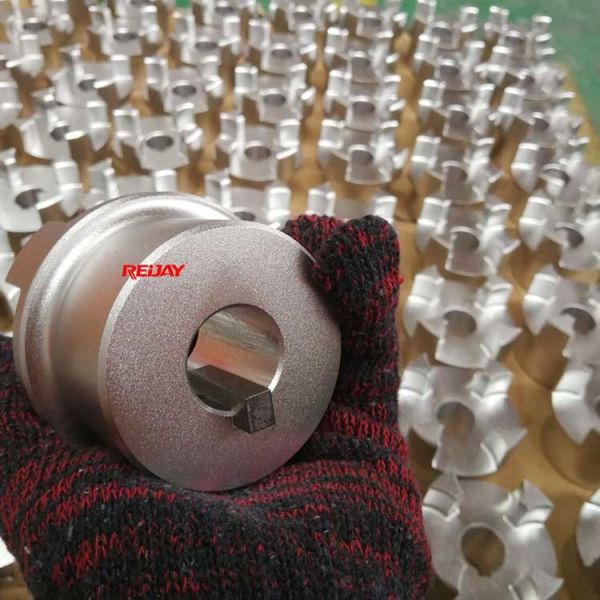

Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling

    Buy cheap Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling from wholesalers

    Buy cheap Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling from wholesalers
    • Buy cheap Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling from wholesalers

    Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling

    Ask Lasest Price
    Brand Name : REIJAY
    Model Number : 28/38
    Certification : ISO2001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 15000 sets/ week
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    Alu Flexible Shaft Coupling Hydraulic Pump 38 Rotex 28 Coupling

    Flexible shaft coupling/servo motor coupling including oil-resistant, dustproof, sand-prevention and dam proof


    Various colours are used to distinguish each hardness. it is failure safe operation design.


    The are many combinations for the shaft and hole. The connection way includes keyway, Spline and single slot locking, etc...


    Customisation is available


    It is widely used in general machinery, hydraulic machinery, engineering machinery, metallurgical machinery, mining machinery and chemical machinery, etc...


    Torsionally flexible, vibration-damping jaw coupling/elastomer coupling with split hubs (drop-out centre design coupling) is easy to assemble/ disassemble via only four screws


    Replacement of spider without displacing driving and driven side


    Positive-locking and frictionally engaged hub connection


    Axial, radial, and angular compensation


    Technical Specifications


    Product NameAluminium Alloy Material / Flexible Spider Coupling/ Hydraulic Motor Coupling A28
    StandardIEC Standard Motor
    MaterialCast Steel, Aluminium, Cast Iron
    TypeClaw Coupling/ Elastic Couplings/ NBL Precision no backlash/ Expansion Sleeve Toothless/….
    Operating Temperature-40°C to +120°C
    Connecting wayKeyway, Spline Single slot locking, etc
    FeatureLight Weight, Flexible, Vibration Damping
    Custom OrderAvailable upon request
    ApplicationEngine Construction and Plant Engineering, IEC standard Motor, Mining Machinery, Hydraulic Machinery….

    DimensionsMax. Radial displacement or max. angular displacement n=1500tnin-1

    Torque

    (Nm)

    DimensionsMax radial displacement with 1°angular displacement and n=15001/mlnMax axial displacementHexagon screws
    DIN933
    8.8 or 10.9
    SpecODHLTBGSBSEOAL (ASPC)TknTkmaxFSLOAL ADSPCScrew SpecScrew Quantity

    Torque TA

    (Nm)

    100140180250
    19401825161042920.65Each
    Sleeve
    Hub
    1°30'

    245527301816521120.893570852BSE+601.4   1.4M5166
    286530352018581281951901060BSE+701.4   1.5M61614
    388038452420681581.151903801068BSE+901.32  1.8M81635
    429546502622741741.262655301276BSE+100 2  2M81635
    4810561562824801921.363106201280BSE+112 2  2.1M81635
    5512060653028882181.524108201692BSE+130 1.92.63.82.2M10869
    65135687535321022521.75625125016102BSE+150   3.82.6M101269
    751608085403611628621280256019118BSE+170  2.43.73M1215120
    9020010010045401303302.52400480020130BSE+200   3.53.4M1615295
