Vision Inspection System Visual Inspection System For Coding
Equipment Visual Detection For Laser Marking Machine
Visual Inspeack Machine Application:
Glass bottles, plastic bottles, metal, plastic bags, cartons,
cartons, labels, etc.
Usage of Visual detection machine:
Used for conveying glass bottles, plastic bottles, metal, plastic
bags, cartons, cartons, labels, etc., marking equipment such as
small character inkjet printers, laser machines, UV,
high-resolution inkjet printers and other supporting equipment fail
during work , resulting in leakage and spraying, and the speed of
rice noodle is very fast, we cannot judge with the naked eye, so we
use visual inspection device instead of manual inspection, which
greatly improves production efficiency. Visual inspection has three
functions: the detection function of the number of characters, the
OCR detection function of characters, the detection function of
scanning and reading QR code and barcode, the detection function of
the number of characters is for the detection of missing codes and
missing codes, and the OCR detection function of characters It is
for character stroke typo detection.
Features of the Vision System:
Applicable to: ink coding, laser coding detection, high-resolution
coding detection and other coding equipment coding detection, it
can detect whether the coding characters are more sprayed, less
sprayed, missing spraying, sprayed crookedly, and the coding
exceeds the area; bar code detect
Product running posture: stable, no obvious deviation, uniform
coding position
Detection accuracy: more than 1/2 of a single character is missing,
the detection rate is ≥99.99%, and the rejection rate is ≥99.99%
Automatic rejection function:
The rejection rate of the unqualified products detected by the
system is ≥99.99%, and the rejection position is uniform and
accurate. The system can set if several items are rejected
continuously, the system will continuously alarm to remind the
operator to find out the reason.

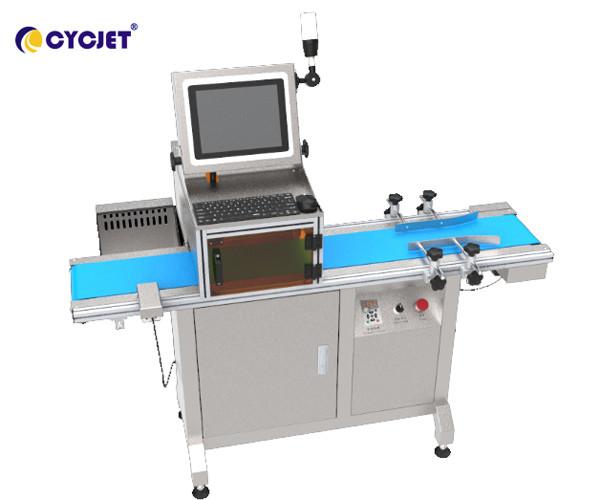

| CVI300-VD Visual Inspection System |
| Model | CVI300-VD |
| Power Voltage | AC220V-50/60HZ(grounding wire necessary) |
| Power Consumption | 120W |
| Paging width | 10-270mm |
| Speed | 20-80m/min |
| Conveyor Width | 200mm |
| Conveyor Length | 1500mm |
| Dimension | 1510X370X840mm |
| Conveyor direction | Single direction |
| Paging offset | ±0.5-2mm(depend on products) |
| Working Environment | Temperature:-10-40℃, Relative Humidity:75% |
| Air Source | 0.4Mpa |
| Unqualified Products Handle | Automatic Remove |
| Reverse Board Remove | After detecting unqualified products, remove them according to the
delay time |
| Conveyor Belt Color | Blue |
