Size Customizable Stainless Steel Dimple Plate DIN Highly Flexible

Size-customizable Stainless Steel Dimple Plate For Heat Exchanger

Dimple Plate For Heat Exchanger introduction

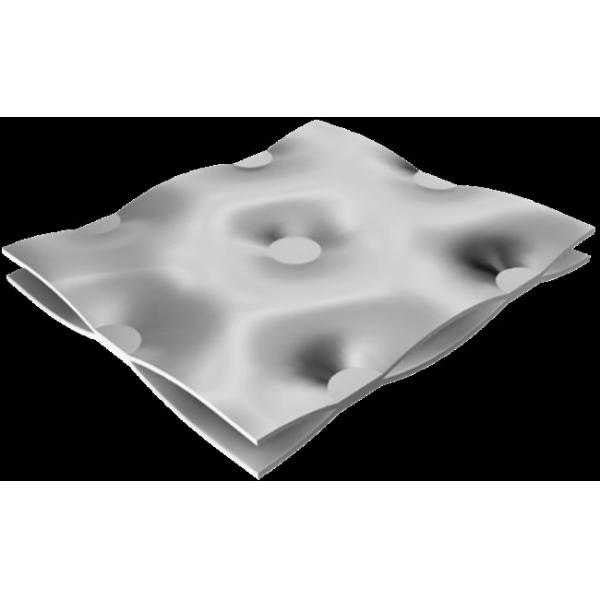

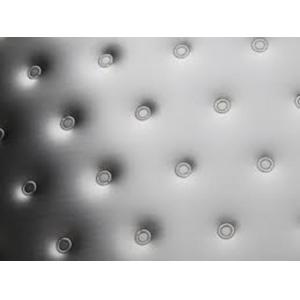

Hanpu Pillow Plate consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. The outside perimeter of the Pillow Plate is fully laser welded to create a pressure boundary. At the edges of the Pillow Plate, a contour is welded to create a pressure-tight part.

The Pillow Plate is hydraulically inflated by using water through a hydrostatic pump. Hydraulically inflating will guarantee for a safe inflation process. Other inflation processes can be used depending on the application.

The inflation process pressurizes the two sheets which allows the material to deform, a cavity will be created for use of a heat transfer medium. The Omega Pillow Plate can be used with either liquids, steam or refrigerants.

Recommended Reasons

1.They simplify and speed up the construction of heat exchange tanks

2. laser welding means they can adapt to different client requirements

3. highly flexible

4. suitable for tanks in the wine, beverage, beer and food industries.

Characteristics

Advantage

1. Cost-effective due to low welding costs
2. Thinner materials can be used, saving you on material costs
3. Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients
4. Reduced deposition (algae, lime, etc.) due to this higher turbulence (less fouling)
5. Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required
6. By working with laser welding machines that are CNC-programmed, all desired shapes, recesses, fastening points and connections are possible

Certification

About us

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

The company has a national functional office and facilities as a scientific research bureau. The research center now has 5 doctor tutors, 8 professional engineers, 11 senior engineers, 42 engineers and 68 assistant engineers making it a leading specialized research bureau.

The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, CNC fine plasma cutting machine imported from Germany, Laser cutting machine, CNC folding machine, CNC wire cutting and CNC shearing machine, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.

The company's sales network throughout the whole world, with a domestic sales market share of 50%, and exported to the United States, Canada, Germany, Spain, France, Switzerland, Sweden, Denmark, Australia, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Poland, Uzbekistan, Indonesia, Vietnam, Singapore, Malaysia, India, Japan, South Korea, Iran, South Africa, Nigeria, and Rwanda.

The company is an internationally competitive engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other comprehensive, full-process services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.
