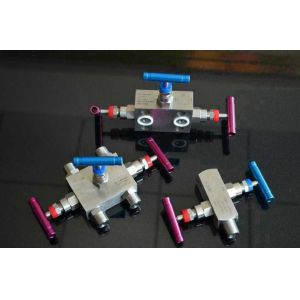

3 port gas valve manifold for differential pressure transmitter
Product name: Integrated three valve manifold
Product model: SF-SB(304SS-3-MA6-NF2)
Product thread: 1/2NPT(F)
Product Specifications: DN6
Applicable temperature: 200°C (high temperature can be customized)
Nominal pressure: 32.00MPa (pressure can be customized)
Material: 20# 304SS 321 316SS 316L 2205 Monel 400
Product Specifications:
1. Composition: The integrated three-valve group is composed of a
valve body, two stop valves and a balance valve.
2. Operation procedure: The operation procedure when the integrated
three-valve group and the differential pressure transmitter are put
into operation: First, open the two drain valves on the
differential pressure transmitter, then open the balance valve, and
then slowly open the two stop valves , Remove the air or dirt in
the pressure guiding pipe, close the two drain valves, and then
close the balance valve, the transmitter can be put into operation.
The operating procedure of the zero point online calibration of the
differential pressure transmitter: first open the balance valve and
close the two shut-off valves, then the zero point calibration of
the transmitter can be carried out.
Entrance (2×): M20×1.5/Ф14 (live-connected welding conduit) (center
distance 35mm).
Outlet (2×): The center distance of the method flange (connected to
the transmitter) is 54mm.
The center distance of the 4 bolt holes is 54mm. ×41.3mm.
Bolt thread: UNF7/16-20, M10 ×1.5, M12 ×1.75
Pressure rating: 16MPa-40MPa, 3532PSi-6000PSi
Applicable temperature: -65°F(-54°C) —450°F(232°C) —1200°F(648°C)
The integrated three-valve group can be connected with: 3051, 3095,
1151, EJA, FX-2, FCX-A/C and Honeywell ST3000 series transmitters
| Working Temp | 0-250degree | Testing Pressure | 42(MPa) | | Testing Pressure | 60(MPa) | Norminal Dia: | 4.7(mm) | | Main Material | S.S 316 | Press Rating | 6000PSI |
| |
| |
| |
Features ss316 water manifold valve
1. Handle: Stainless Steel straight handle.
2. Packing Cap realize packing outside.
3. Bolt in the plate help fix needle valve on it, no need to
disconnect packing
4. Whole-set valve cover design prevent from the item disconnection
Applications 3 port gas valve manifold
3 way valve manifold can replace the traditional three valve, and
support the use of domestic and international differential pressure
transmitter , widely used in electric power, chemical, metallurgy ,
textile automatic control systems and scientific research
departments
