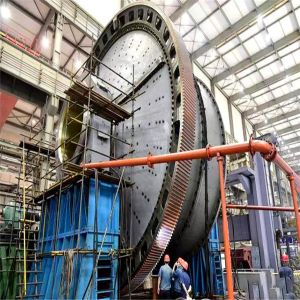

200-2500 Kw Medialess Slag Grinding Machine 1400-2800 Mm Length < 400mm

self-grinding machine

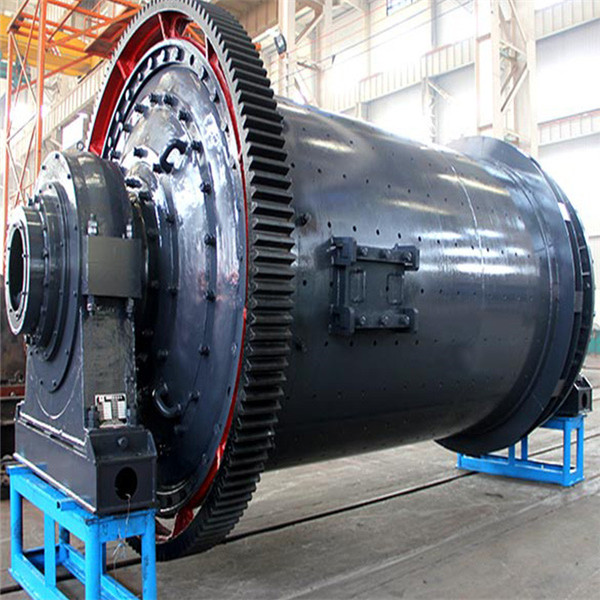

self-grinding machine describe

Self-grinding machine, also known as medialess grinding machine. The self-grinding machine has two driving modes: variable speed and different power and fixed speed, and some self-grinding machines are also equipped with micro-motion devices. In order to facilitate maintenance, it is equipped with a cylinder jacking device; for large mills, in order to eliminate the static resistance moment at startup, modern advanced technologies such as hydrostatic bearings are used to ensure the safe operation of the autogenous mill. The biggest advantage of the autogenous mill is that the raw ore from the stope or the coarsely crushed ore can be directly fed into the mill. Usually minerals are fed into the mill rod mill according to a certain particle size ratio. The autogenous mill can grind the material to 0.074mm at one time, and its content accounts for more than 20% to 50% of the total product. The crushing ratio can reach 4000-5000, which is more than ten times higher than that of ball and rod mills. The autogenous mill is a new type of grinding equipment with both crushing and grinding functions. It uses the material to be ground itself as the medium, and achieves pulverization through mutual impact and grinding, hence the name of the self-grinding machine.

self-grinding machine Features

1. The end cap and the cylinder are not connected vertically, and the end cap liner is tapered;

2. The ore discharge grid plate is added on the side of the ore discharge end. The material discharged from the grid plate passes through the conical drum screen, the material under the screen is discharged from the discharge port, and the material above the screen is returned to the self-grinding machine through the spiral self-return device for regrinding. , forming a self-closed-circuit grinding, which can further control the particle size of ore discharge and reduce the amount of ore returning;

3. The mine feeding side adopts a mobile feeding trolley;

4. The large gear is fixed on the hollow journal at the discharge end. The rest of the structure of the wet autogenous mill is roughly the same as that of the dry autogenous mill

self-grinding machine data sheet

HUATAO LOVER LTD was born in 2001, always with the philosophy of "respecting the heaven and loving the people, striving for perfection" as the main line of development, and continuously involved in different industries. After more than ten years of development into a group enterprise, the products now involve the following industries:

Paper Making Machine & Spare Parts: Toilet Paper Machine,Tissue machine,Kraft Paper Making Machine，Head Box，Paper Machine Rolls, Dewatering Elements, Dryer Cylinder and Supply all spare parts used for Pulp and paper industry.

Stock Preparation & Pulp Spare Parts： Breaking and Pulping equipment,Screen And Cleaning Equipment,Floatating-Dispersering-Bleaching equipment,Agitator and Pulp pump ect.

Paper making Machine Spare Part - Wire Section renovation, Press Section renovation,Dryer section renovation,Paper machine Cloth,Head Box,Wiper Blade,Press roll and stone rolls,Section roll and Cyliner mould,Calender,Rewinder,Reeler

Geosynthetics series- Geomembrane Pond Liner,Geotextile,Woven Geotextile,Geocell,Geogird,Geomat,Geonet,Geosynthetic Clay Liner,Geocomposite Drain Layer.

Industry Felts series - PBO felts, Kevlar Felt, Polyester Felt,Roller cover,Cement fiber felt,Filter Felt

Industry Belts series - Corrugator belts,battery pasting belts,Polyester conveyor belt,Spin belt,Filter belts

Industry Fabrics series - Paper machine cloth,Filter fabric,Screen printing mesh,Polyester mesh,

Vibrating Screen Mesh used for minng industry

       Our team of senior engineers can organize the best commodity source for you. By supplying the best Chinese products, Professional design and responsible attitude on service,we devote to creating our unique brand "HUATAO" in global. Since the establishment, " HUATAO " products have been supplied to more than 60 countries and set up the agencies. And our products and service have been recognized and trusted by the end users all the way. We believe, once we have the cooperation, "HUATAO" will be your most reliable partners in your road to success. Because of trust , business will be simple.
