2.75m Long By 2.4m High Hot Dipped Galvanized And Powder Coating
Palisade Fencing Panels
Palisade fencing panels introduction
It is a high spec security fencing it is designed to provide a
formidable barrier against intrusion and theft. It is manufactured
using hot-formed and cold-rolled substantial steel sections. It is
a cost effective way to providing a high level of security to the
boundary line of any property.
Palisade fencing panels size
| Height |
Post Dimensions |
Rail Dimensions |
Support Legs |
Corrugated Steel Palisades |
1.2m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
1.5m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
1.8m |
102x44 or 100x55 |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.0m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.1m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.4m |
102x44 or 100x55 |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
2.7m |
102x44 or 100x55 |
50x50x6mm |
1 |
W - 2.0mm or D - 3.0mm |
3.0m |
127x76 |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |
3.6m |
127x76 |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |
Palisade security fencing drawing
Palisade security fencing details and options
Post centers
2.75m
Heights
1.2m
1.5m
1.8m
2.0m
2.1m
2.4m
3.0m
Paling tops
Single pointed
Triple pointed
Square
Round and notched
Rounded
Pale thickness
‘W’ profile 2.0mm – commercial specification
‘W’ profile 2.5mm – general purpose to BS: EN: 1722 Pt 12
‘W’ profile 3.0mm – security purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.0mm – general purpose to BS: EN: 1722 Pt 12
‘D’ profile 3.5mm – security purpose
‘D’ profile 4.0mm – security purpose to BS: EN: 1722 Pt 12
Horizontal cross rails
Three standard sizes to suit height and site requirements.
45x45mm for 1.2, 1.5 and 1.8m heights
50x50mm for 2.0, 2.1 and 2.4m heights
65x50mm for 3.0m
Accessories

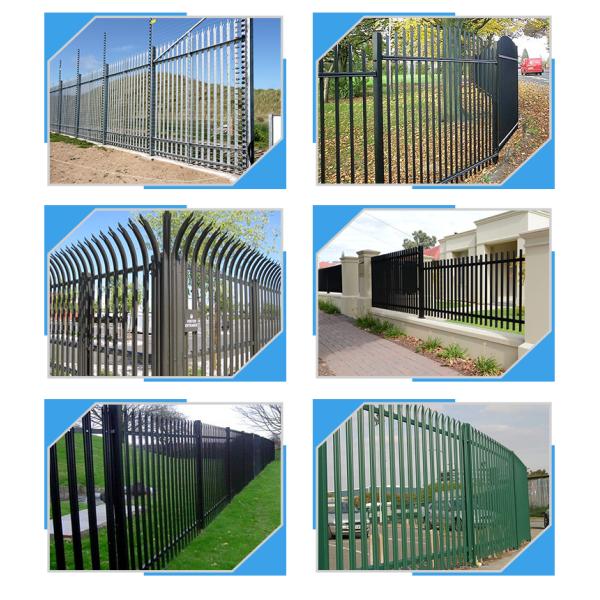

Palisade fencing panels usage
Common uses include railway and track protection, schools, colleges
and universities, research laboratories, motorways and highways
protection, utility companies protection and around industrial
sites.
