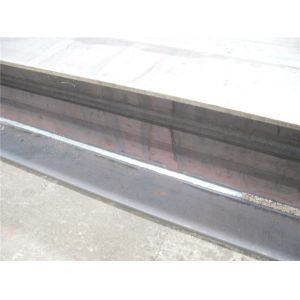

T / H Beam Bending Machine , VFD 11.5m Electron Beam Welding Machine

Heavy Duty Beam Welding Line T / H Beam Assembling Straightening

Quick Details

• Web height up to 2000mm, thickness up to 40mm; Suitable for light duty beam;
• H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
• Save space and economize workshop; shorten the production time and improve the efficiency;
• Economize the investment of crane equipment and operator;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Japan Mitsubishi PLC controller;

1. Introduction

H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening. It centralizes the assembly, welding and straightening functions on one machine which saves space and economize workshop. Reduce workflows: shorten the production time and improve the efficiency. Economize the investment of crane equipment and operator.

2. Main Parameters

* We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our H-beam combination workstation for assembly, welding and straightening has the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• Synchronous clamping and centering system for web and flange;
• Japan Mitsubishi PLC controller;
• The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Flux feeding and recovery machine;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
• painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Lifting lug;
• Standard color:

4. Reference photo

5. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;

Weldsuccess product designs combine accuracy, speed, flexibility, durability, reliability and advanced technology to deliver machines with the highest performance-to-price ratio in the industry with CE certificates.

Weldsuccess attend the International Fair every year, like the Germany Essen,USA Fabtech and some other international local welding fair.

And since 2012, we focuses on the international market only. The welding positioners, welding rollers and welding column boom have been exported to more than 40 countries.

We are looking forwards to the cooperation with you soon!
