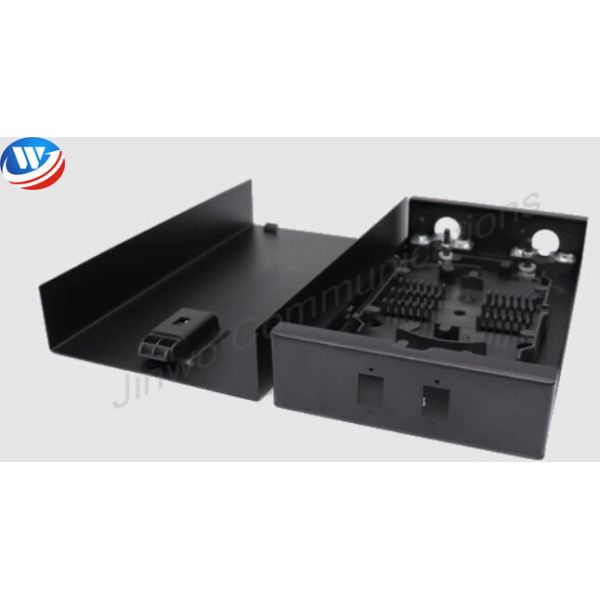

Wall Mounted F/O Distribution Box For 2pcs SC Adaptor
It comes with a number of cable management devices for organizing
cables entering and exiting the panel.
This Patch Panel are equipped with slack-fiber storage spools, and
Splicing tray.
Feature:
Technical Information:
Type: Cable installation, wall mount
Capacity: 2pcs SC Adaptor
Connector options: SC, SC/APC, LC, LC/APC, ST, FC
Key Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C optional, with or without fiber optic
pigtails and adapters
8) Easy for management and operation
Product Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
Electricity Performance:
| Environmental temperature | -25 - 55°C |
| Atmosphere pressure | 70~106Kpa |
| Insulating resistance | >2×104 MΩ/500VDC |
| Relative humidity | <85%(when the temperature is below 30°C) |
| Voltage resistance strength | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over |
