Uncooled Thermal Camera Module with Various Intelligent Image
Algorithm
Thermal Imaging Module
LWIR Uncooled Thermal Camera Module for Thermal Security Camera
Product Description

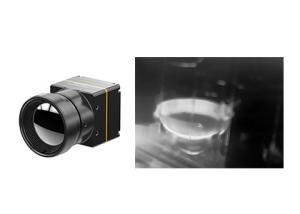

COIN417G2 uncooled infrared module is a new generation version of
COIN417 developed by Global Sensor Technology (GST). It integrates
400x300@17μm wafer level package (WLP) infrared imaging detector,
high performance signal processing circuit and image processing
algorithm. There are three types of lenses for COIN417G2 Thermal Module: fixed
athermal 9.1㎜/13㎜/19㎜ lenses for different observation distance.
By using the WLP infrared detector and orienting for fully
optimized SWaP, the typical power consumption of COIN417G2 has
reduced by 50%, from 1.4W to 0.7W, while its performance is not
compromised. Its super-fast start up time greatly reduces from 10s to 3.5s
without waiting for long time. It guarantees IP67 protection level and pass the ESD test: contact
discharge±4KV, air discharge±8KV.
The COIN417G2 infrared module features in sharp and crisp thermal
image presentation, compact size and low cost. It also has an
optional thermographic function with measurement range from
-20℃~550 ℃ for industrial temperature measurement (support customization and expansion)
COIN417G2 thermal module could meet the requirements of remote
temperature measurement. It can be integrated into all kinds of
thermal cameras.
Main Features
- Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
- Light Weight: 29g±3g (with 9.1mm Lens)
- Typical NETD≤40mk
- Enhanced Image Quality
- Low Power Consumption
- Rapid Development & Integration
Product Specifications
| Model | COIN417G2/R |
| IR Detector Performance |
| Material | VOx |
| Resolution | 400×300 |
| Pixel Pitch | 17μm |
| Spectral Range | 8μm ~14μm |
| Typical NETD | ≤40mK |
| Image Processing |
| Frame Rate | 50Hz/30Hz/25Hz |
| Start-up Time | 3s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656 |
| Image Algorithm | Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE) |
| Digital Zoom | 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software |
| ICC Software | Module Control and Video Display |
| Electrical Specification |
| Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male) |
| USB Extension Board | Type-C |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.7W |
| Temperature Measurement |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional
Temperature |
| SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion
from Gray to Temperature |
| Physical Characteristics |
| Size (mm) | 25.4×25.4×29.3(With 9.1mm Lens)
25.4×25.4×41.2(With 13mm Lens)
25.4×25.4×40(With 19mm Lens) |
| Weight | 29g±3g(With 9.1mm Lens)
42g±3g(With 13mm Lens)
44g±3g(With 19mm Lens) |
| Environmental Adaptability |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction |
| Certificates | ROHS2.0/REACH |
| Optics |
| Optional Lens | Fixed Athermal: 9.1mm/13mm/19mm |
| Protection Level | IP67 |
Industrial Applications
The COIN417G2 thermal module be used in Thermography, Security
Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware,
UAVs Payload, ADAS etc.
Clear Thermal Imaging
FAQs
1. Why is thermal imaging technology popular in night vision?
In night vision industry, thermal imaging has outstanding
advantages in long distance, concealment and resistance to harsh
imaging environment.
2. What are the advantages of infrared thermal imaging in vehicle
vision system?
Infrared thermal imaging vehicle vision system is a kind of ADAS
system (advanced driving assistance system), which converts the
infrared radiation of the target into the infrared image visible to
the naked eye. The infrared radiation of the object happens all the
time and is not affected by external weather factors. Therefore,
the on-board vision system supported by thermal imaging technology
is not affected by the weather such as night, rain, snow, haze,
sand and dust, and can present clear road images in front of the
vehicle all day long, and can also eliminate glare interference
when driving head-on.
