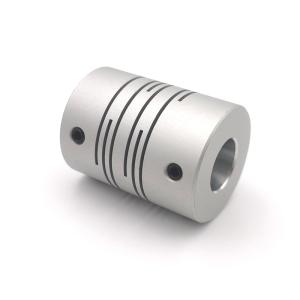

Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling

    Buy cheap Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling from wholesalers

    Buy cheap Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling from wholesalers
    • Buy cheap Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling from wholesalers
    • Buy cheap Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling from wholesalers
    • Buy cheap Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling from wholesalers

    Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling

    Ask Lasest Price
    Brand Name : XTC
    Model Number : OEM
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30000pcs per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling

    Silver Aluminum Alloy Shaft Coupling Spiral Beam Coupling


    OverView


    Product NameSpiral Beam Coupling
    TypeFlexible Coupling
    MaterialAluminum Alloy
    Surface TreatmentAnodizing
    ColorSilver
    SizeMultiple Available
    Drawing File3D/CAD/DWG/PDF/STEP
    Processing TypeCnc Turning Cnc Milling
    ItemOEM Precision CNC Turning Parts Machining
    Model NumberOEM

    Feature

    • No gaps, synchronous operation;
    • Good flexibility;
    • High-strength aluminum alloy, low inertia;
    • Easy maintenance, no lubricating oil and other maintenance services;
    • Screw positioning.

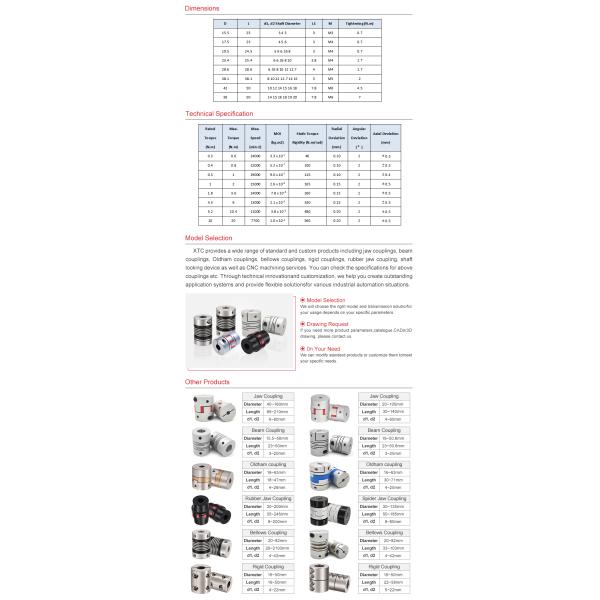

    Dimensions of Spiral Beam Coupling


    DLd1, d2 Shaft DiameterL1MTightening (N.m)
    15.5233 4 53M30.7
    17.5234 5 63M40.7
    19.524.55 6 6.35 83M40.7
    25.425.46 6.35 8 103.8M41.7
    28.628.66.35 8 10 12 12.74M41.7
    38.138.18 10 12 12.7 14 155M52
    425010 12 14 15 16 187.8M64.5
    505014 15 16 18 19 207.8M67

    Technical Specification of Spiral Beam Coupling


    Rated Torque (N.m)

    Max. Torque

    (N.m)

    Max. Speed (min-1)

    MOI

    (kg.m2)

    Static Torque Rigidity (N.m/rad)Radial Deviation (mm)

    Angular Deviation

    (°)

    Axial Deviation

    (mm)

    0.30.6240003.3 x 10-7460.102±0.3
    0.40.8220005.2 x 10-71000.102±0.3
    0.51190009.0 x 10-71150.102±0.4
    12150002.6 x 10-61650.152±0.5
    1.83.6140007.8 x 10-62600.152±0.5
    4.59130002.1 x 10-53300.152±0.5
    5.210.4110003.8 x 10-54800.202±0.5
    102077001.0 x 10-45600.202±0.5


    FAQs


    Q1: Are you manufacturer or trading company?

    A1: We are manufacturer with more than 10,000 square meters plant.


    Q2: Will you provide free samples?

    A2: Yes, we will provide free sample for customer to test.


    Q3: Can you make CNC machining parts according to our drawings?

    A3: Yes, we can make the parts according to your drawings.


    Q4: Can you make CNC machining parts according to samples?

    A4: Yes, we can make the parts according to your samples.


    Q5: Which shipping method will you use for delivery?

    A5: It depends on customer. Our price is based on FOB, customer needs to afford the shipping. But we are happy to help based on request.


    Q6: What’s your payment terms?

    A6: We accept T/T, Western Union, Money Transfer, TAAJ, etc.

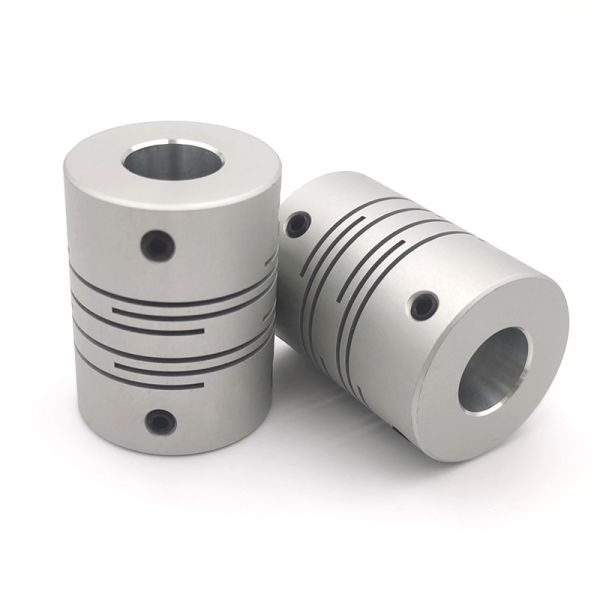

    Quality Anodizing Silver Aluminum Shaft Coupling 50mm Spiral Beam Coupling for sale
