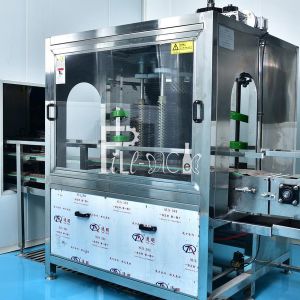

3 Heads Automatic Bucket Decapping Machine 1500bph

The Automatic de-capping machine with 3 heads

This machine is driven by cylinder, controlled by PLC;

Automatic working by barrel checking;

The machine has 3 de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;

De-capping head: 3 heads

Dimension: 1200*500*2100 mm

Air consumption: 0.1M³/min

Air pressure: 0.6Mpa

Pneumatic brand: Airtac

Weight: 180kg

Equipment list:

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is located in Jiangsu Zhangjiagang,which dedicated to technology research,manufacture and sales.Since the establishment,we always keep engaging in gallon filling field. Mainly provide the gallon bottles whole factory planning, from preform design to bottle blowing and filling,packing.

Fill-pack manufactures & provides full range of equipment for gallon water filling line.
· Water Treatment System - 250LPH to 30000LPH
· 5 gallon Full-automatic & semi-automatic blow molding machine
· Preform Injection Molding
· 5 Gallon Bottle Washer up to 2000BPH
· Filling machine - 100BPH to 2000BPH for 5 gallon
· Gallon Barrel Adhesive Labeling
· Gallon bottle cap shrink labeling machine
· Gallon Water Plant Consumables

We are committed to provide high-quality machine and best service for the gallon bottle water factories in the world, to help customers create the most value. Fill-pack request more precision to every parts, so that 100% meet the process requirements, make sure 100% customer satisfaction.

We own 3800 square meters modern factory in accordance with ISO9001: 2000 certification system standards with all kinds of advanced processing equipment and testing equipment, experienced technicians, scientific and strict management, all constitute FILLPACK excellence in product manufacturing system, which provides the strongest protection for FILLPACK product quality.

We believe in FILLPACK’ s future while you choose us!
