1600mm Lightweight Conveyor Belt Splicer Vulcaniser With Aluminum Structure

1600mm Lightweight Conveyor Belt Splicer with Aluminum Structure

Vulcanization — the use of heat, time and pressure to re-splice a belt — is the most reliable conveyor belt repair method, as it creates the highest return to original belt strength. So the choice of conveyor belt splicer is very important.

SECTIONAL CONVEYOR BELT SPLICER

New type Vulcanizing Press with E type cross beam, one kind of heavyweight vulcanizer, use new design components, include flexible pressure bag, traverse bars with standard heating platen and controller. Learn from Canada brand similar products.

TECHNICAL PARAMETERS

• Water pressure bag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa/2.0Mpa.
• Available in rectangular shape 90°, rhombic 16° 42‘ or 22°
• Uniform pressure distribution by means of the pressure bag
• 200 p.s.i. (14 kg/cm sq.) units usually used to do steel cord conveyor belting
• Different heating platen size and combination.
• Water-free is used as the pressure medium
• Pressure regulation up to max. 70 N/cm² (7 bar/100 PSI)
• Short heating-up time
• Water cooling system equipped with extruded cooling channels for short cooling-down time
• Optimized pressure and temperature distribution
• Degree of the heating platen: 22 degree bias angle or 16 degree, 20 degree, rectangle and other degree is optional.
• Power Voltage: 380V. 660V. 525V480V. 440V. 415V. 400V or 220V
• Vulcanizing temperature:145℃ (adjustable 0~200℃)
• Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 25 min, accords to different conditions, actually, normal conditions, is around 20 mins.
• Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)

Note:

• Specifications are subject to change without notice;
• Build-in cooling standard on all units;
• Total weights include electrical control panel, cable set and set up templates for all models;
• 200 PSI models include fluid pressure pump and reservoir unit Model HPP20-4(mandatory for operating pressure above 100PSI/7 kg/cm sq);
• Temperature adjustable between 0-199deg.C;
• Sectional vulcanizers are built on a 22 degree bias, 16/20 or other degree are optional;
• Custom sizes, rectangular configurations and multiple platen arrangements available on request.

COMPONENT OF RUBBE CONVEYOR BELT SPLICER MACHINE

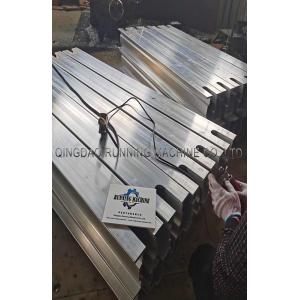

The Rubber conveyor belt splicer machine consists of Aluminum beam, plywood board, heating platen, water cooling platen, water pressure bag and electricity control cabnient.

RUBBER CONVEYOR BELT SPLICING INSTRUCTION
