    FD 200-25 507 Contitech Air Spring 161339 Triangle 6332 Bellows 4507 With 4pcs 1/2-13UNC Bolts

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6960
    Certification : ISO/TS16949, ISO9001
    Price : 4-9 Pieces / US $49 | 10-49 Pieces / US $45 | 50+ Pieces / US $39
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FD 200-25 507 Contitech Air Spring 161339 Triangle 6332 Bellows 4507 With 4pcs 1/2-13UNC Bolts

    FD 200-25 507 Contitech Air Spring 161339 Triangle 6332 Bellows 4507 with 4pcs of 1/2-13UNC Bolts

    AIRSUSTECH 2B6960 Specifications:

    AIRSUSTECH Part Number:2B6960Triangle Part Number: 4429
    AIRSUSTECH Bellows Number: 20-2Triangle Bellows Number: 6332
    Contitech Part Number: FD 200-25 507Firestone Part Number: W01-358-6960 /
    Contitech Part Number: FD200-25 507
    Firestone Part Number: W013586960/
    Contitech Part Number: FD20025 507
    Firestone Part Number: W01 358 6960
    Contitech Part Number: FD200 25 507Firestone Bellows Number: 20-2
    Goodyear Flex member Number: 578-92-3-206 /
    Contitech Part Number: FD 200-25 CI 1/4-18NPTFGoodyear Flexmember Number: 578923206 /
    Goodyear Flex-member Number: 578 92 3 206
    Contitech Part Number: FD200-25 CI 1/4-18NPTFGoodyear Part Number: 2B9-251
    Triangle:6332/4429
    Contitech Part Number: FD20025 CI 1/4-18NPTFGoodyear Part Number: 2B9 251
    Contitech Part Number: FD 200-25 507 1/4-18NPTF
    Contitech Part Number: FD200 25 CI 1/4-18NPTFGoodyear Part Number: 2B9251
    Contitech Part Number: FD200-25 507 1/4-18NPTF
    Contitech Part Number: FD200 25 507 1/4-18NPTFGoodyear Bellows Number: 578-92-3-206 /
    Contitech Part Number: FD20025 507 1/4-18NPTF
    Air spring supplier: ContiTechGoodyear Bellows Number: 578923206 /
    Reference number: 161339
    Competitor/Supplier ID: FD20025507Goodyear Bellows Number: 578 92 3 206
    Suspension Supplier: Tuthill Technology
    Air Spring Supplier: TriangleCompetitor/Supplier ID: 7025
    Reference: 6332
    Competitor/Supplier ID: 4507Suspension Supplier: Tuthill Technology
    Firestone Trim: w013586960FSIP OEM: W016816960


    AIRSUSTECH 2B6960 Technical Data:


    Assembly Weight: 8.1 lbs
    Design Height: 9-11 inches
    loading cap.at3.0bar: 11.17kn
    loading cap.at7.0bar: 31.65kn
    Maximum Diameter: 10.4 inches
    Operating Temperature: 56Cº to -53Cº
    Weight : 6.5kg
    Desigh height : 300mm
    Deflection(height min) :150mm
    Deflection(height max):440mm
    Working stroke: 290mm
    Cross Information

    Compressed Height: 3.12 inches /
    Top Cover Plate Diameter: 6.31 inches / 160mm
    Bottom Cover Plate Diameter: 6.31 inches / 160mm
    Screw Center Distance : 89 mm
    Distance Gas Hole Between Nut 44.5 mm
    Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC
    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Rubber Bellows MAX Diameter: 262 mm
    The Working Stroke : MAX 325 mm to MIN 79 mm
    Gas Hole / Air inlet : 1/4 NPTF



    Description convolution/ convoluted air spring

    convoluted air spring is a bellows style
    AIRSUSTECH 2B6960 air spring . The bellows air springs have one, two, or three convolutions in the flexible member. This dual complex air bags are often used as a lifting spring or shaft trucks and trailers, do an air spring, also as an actuator or insulator in the industrial and commercial applications and devices. The specifications will vary on your FD 200-25 507 Contitech Air Spring, but double convoluted AIRSUSTECH 2B6960 air spring bags are found in crimped design as well as sleeve type bellows. They will provide similar features and functions but sleeve type of retainer permanent connection with the final between retainers and external replaceable parts plait ring.

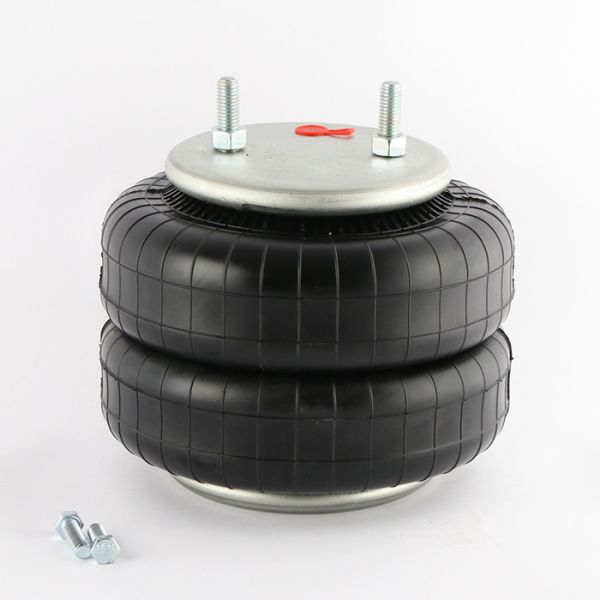

    The real photos of AIRSUSTECH 2B6960 air spring
