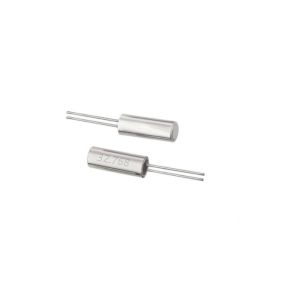

12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC

    Buy cheap 12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC from wholesalers

    Buy cheap 12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC from wholesalers
    • Buy cheap 12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC from wholesalers
    • Buy cheap 12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC from wholesalers

    12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC

    Ask Lasest Price
    Brand Name : YXC
    Model Number : X206032768KGB2SC
    Certification : RoHS
    Price : Negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : 50000PCS
    Delivery Time : 1-10DAYS
    • Product Details
    • Company Profile

    12.5PF Cylindrical Quartz Crystal Units X206032768KGB2SC

    Electronic components 32.768KHZ 12.5PF 10PPM QUARTZ CRYSTAL UNITS X206032768KGB2SC Directly inserted cylindrical crystal oscillator


    Part number:

    Package typePart numberModel Number
    2P 2060X206032768KGB2SCYT-26
    2P 3080X308032768KGB2SCYT-38

    Description:

    Frequency (HZ)32.768KHZ
    Frequency offset (PPM)±10PPM
    Voltage (V)/ Load (PF)12.5PF
    Working Temperature,-20℃~+70℃
    Dismensions (mm)2.0mmx6.0mm

    Reliability Test Items

    1. Mechanical Performance Tests

    Shock

    Orient the sample in any attitude and drop it three times from a height of 75 cm onto a hardwood board with a thickness of 3 cm


    VibrationSubject the sample to 1.5-minute cycles of frequencies of 10 to 55
    Hz and amplitudes of 1.5mm for two hours in each of the X,Y, and
    Z directions, or 6 hours in total.
    Tensile strength of terminalApply a 1.5Kg tensile load to each terminal and sustain it for
    30±5 seconds.
    Bending strength
    of terminal
    Apply a 0.5 Kg load to one of the terminals, and after tilting the
    main unit for 90°,restore to its original attitude. Then, tilt it in an
    opposite direction for 90°,and restore to its original attitude
    Solder abilityDip terminals in RMA flux for5 ± 0.5 seconds. Under room
    temperature. Dip terminals in a 230±5℃ solder bath for 5±0.5
    seconds. The solder shall leave an undipped terminal length of 2 mm at their base .
    Resistance to
    Soldering Heat
    Dip terminals in a 260±5℃ solder bath for 10±0.5 seconds.
    The solder shall leave an undipped terminal length of 2 mm at their
    base
    Leaking TestTake measurements with a helium leakage detector,or measure
    insulation resistance under pressure.

    Specifications:

    Specification NumberSpecifications
    AAny variation between the pre- and post-test frequencies shall remain within ±5ppm. The
    post-test equivalent series resistance shall remain within its specified tolerance range.
    BAny variation between the pre- and post-test frequencies shall remain within ±10ppm.
    The post-test equivalent series resistance shall remain within its specified tolerance range
    CAfter each test, no visible damage shall be manifested, nor shall the hermetic seal break down.
    DAt least 90% of each dipped area shall be covered by fresh solder
    E1×10-2 μPa.m3
    /s Max or IR≥500MΩ

    Remark:Measurements shall be taken at 25±2℃,and after each test, the sample be exposed
    to two hours at 25±2℃



    Product Description
    Resistance Welded HC-49/T Package
    Item
    Specifications
    Frequency
    32.768KHz
    Load Capacitance(CL)
    12.5pF
    Frequency Tolerance (at 25°C)
    ± 10ppm
    Frequency Stability Over Operating
    Temperature Range
    ± 10ppm
    Operating Temperature Range
    -20°C--+70°C
    Storage Temperature Range
    -40°C--+85 °C
    Shunt Capacitance (C0)
    7pF Max
    Driver Level(Typical)
    100µW Typical
    Aging(at 25°C)
    ± 5ppm/year maximum
