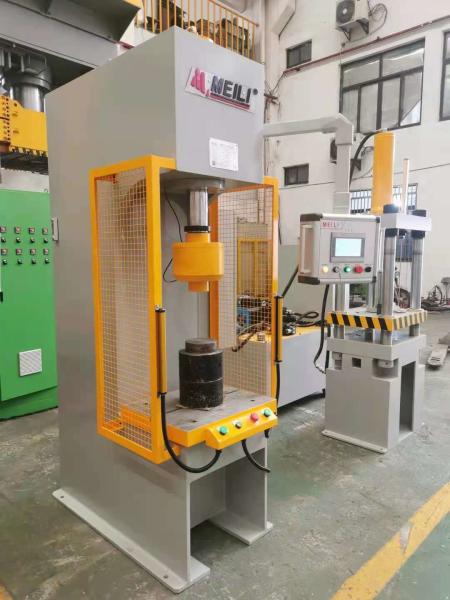

40T C Frame Servo Driven Automatic Hydraulic Press.
Product characteristics
Open type welded strong frame structure through annealing process,
ensures high rigidity and save working space.
Ram cylinder structure: built-in auxiliary cylinder, fast dry run
speed, enhances high productivity.
Control system: PLC + HMI
Position setting: used of linear scale to feedback the position of
moving bolster, ease to adjust the approaching and pressing stroke
length.
Pressure setting: ease to adjust the pressure as pressing process
technology requirement.
Standard:
Light curtain safety device
Touch panel controller(TPC)
PLC program controller
Stroke,speed digital control device
Cooler device Displacemert sensor
Constant stroke/constant pressure exchange
Advantages:
Independent electrical control with PLC and TPC.
Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that
the hydraulic system is not leaking.
The pressure, stroke, and time of pressure maintaining can be
regulated.
High quality and performance with good price.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000
|
Powerful hydraulic presses can be used for a wide range of
applications such as assembly, forming and stamping. And providing great utility and minimal stroke deflection. With experience in a wide variety of industries you can trust
MEILI to bring reliability, productivity and precision to your
operation. Contact us today to learn how we build a custom
hydraulic press to help your business grow.
MEILI C-type Hydraulic Press is a kind of multifunctional machine
which has strong generality. It is suitable for the press fitting
of shaft components and axle sleeve parts as well as the movements
of coining and overprinting. It can also be used to press powder
and plastic products which the requirements are not strict. At the
same time, it mainly applies to the fields of machine tool,
engineering machinery, electrical components, bearings, washing
machine, automobile parts and motor components. It can even be used
as assembly line. The pressure, stroke, and time of pressure
maintaining can be regulated.
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and
patent.
Q2: Whether to provide quality assurance and complete after-sales
support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits
my needs best?
Answer: Before we have a deeper communication on the target
machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and
producing hydraulic press for 20 years. So the product is stable
and with high quality.
