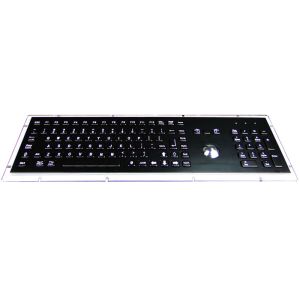

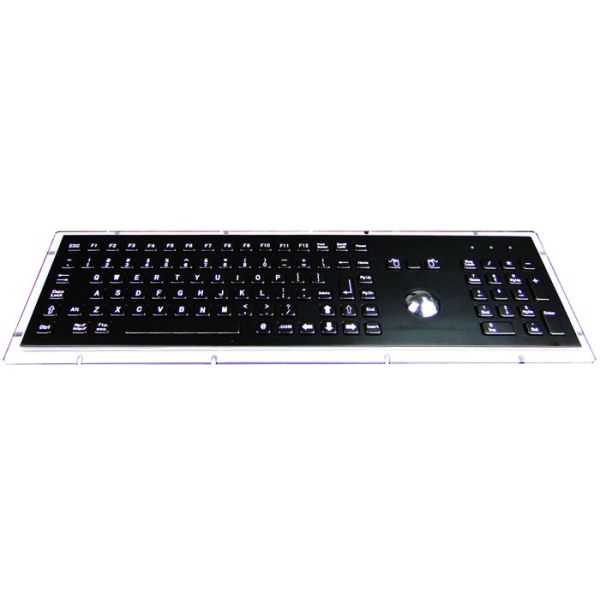

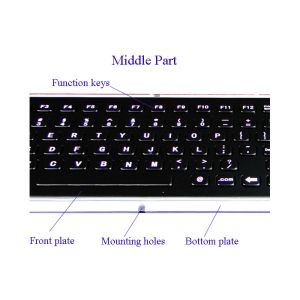

    Electroplated Industrial Metal Keyboard Liquid Proof With Optical Trackball Mouse

    Ask Lasest Price
    Brand Name : KINGLEADER
    Model Number : MKB-FN103A-TB-B-2
    Certification : CE,FCC,ROHS
    Price : US$195-250/pc Exworks
    Payment Terms : T/T,Paypal, L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000pcs/month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Electroplated Industrial Metal Keyboard Liquid Proof With Optical Trackball Mouse

    Electroplated Black Industrial Metal Keyboard with Full Keys and Optical Trackball Mouse


    ItemsSpecifications
    Product Description- Electroplated black,rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 103 customizable,full travel keys, integrated OPTICAL trackball,12 function keys and numeric keypad
    Application

    - All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

    - Workstations or machines in factories

    - Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

    Key Features

    - 103 keys(of them 12 function keys)

    - Panel mount from the rear side
    - Integrated optical trackball,12 function keys and numeric keypad
    - Protruding full travel(2.0mm)keys with excellent tactile feel

    - Etched characters and graphics makes it durable for long use
    - Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
    - Exposed parts made of stainless steel, high vandal-proof,meet IK07 standard
    - Dust-proof and liquid-proof, meet IP65 requirement
    - PS/2 or USB interface for option
    - Customizable layout upon customer’s request

    Material

    - Front panel & Keys: Brushed stainless steel
    - Back panel: Aluminum alloy

    - Trackball: Stainless steel(Dia: 38mm)

    Electrical Data- Power supply voltage: DC 5 V ± 5%
    - Current rating: 20 mA
    - Interface: USB or PS2
    - EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1
    - FCC: Part 15, class B
    - Safety: EN 60950, CE compliant
    Environmental Characteristics- Operating temperature: -20º C to + 60º C
    - Storage temperature: - 40º C to + 80º C
    - Saline mist: 96 hours, IEC 60512-6
    - Damp heat test at + 40º C: 21 days, IEC 60512-6
    - Dry heat test at + 85º C: 10 days, IEC 60512-6
    Mechanical Data- Actuation force for key:120±15g
    - Key travel: 2.0mm
    - Lifetime (cycles): Min 5, 000, 000 actuations
    - Sealing protection: IP65/NEMA4X from the front
    - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
    - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
    Compatible Operation System- PS2: Win NT4, 98SE, 98ME, 2000, XP
    - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
    Reliability

    -MTBF:>20,000 hours

    -MTTR:<30 minutes

    Certification-FCC,CE,RoHS
    Dimension-Front panel: 478.00 x 135.00
    -Back panel: 502.00 x 159.00, thickness:49.10mm (to the tallest component)
    Weight-2.20 kgs

    MKB-FN103A-TB-B-2
    Key Features
    1) 103 keys(of them 12 function keys) panel mount
    2) Integrated optical trackball and numeric keypad
    3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feel
    4) Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
    5) Built from stainless steel, high vandal-proof.
    6) Dust-proof and liquid-proof, meet IP65 requirement
    7) PS/2 or USB interface for option
    8) Customizable layout upon customers request
