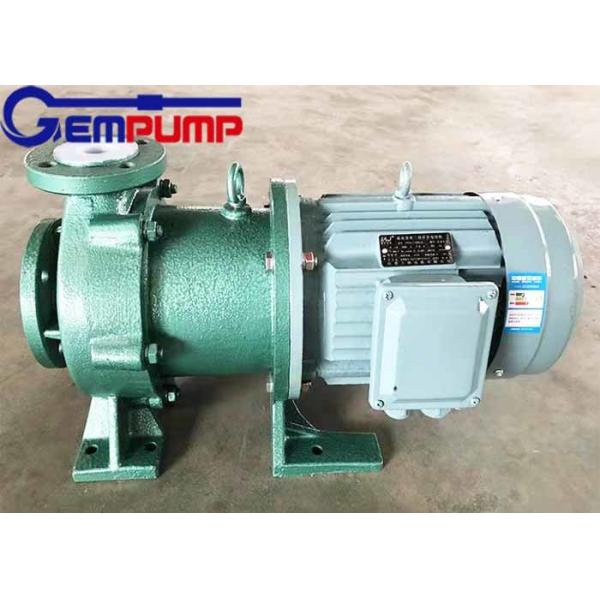

    Chemical Handling Transfer 50m Magnetic Centrifugal Pump

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : CQB25-15
    Certification : ISO9000,CE
    Price : 1000 USD/Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 sets per month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Chemical Handling Transfer 50m Magnetic Centrifugal Pump

    Magnetic Pumps general
    Magnatex magnetic drive pumps are the efficient and dependable choice for medium-flow, medium to high head applications. Pumps' process side conforms to ANSI B73.3 dimensions. Magnatex pumps feature sub-ANSI sizes for efficient lower flow applications. Affordable, top-performing Magnatex pumps give you higher efficiency with lower horsepower and lower total cost of ownership.Gempump China.

    The Series CQB magnetic pumps (magnetic driven pumps) are made of corrosion-resistant engineering plastics, alumina ceramic and stainless steel. With reliable static seals replacing dynamic seals, all parts in the flowing path of magnetic pumps are fully sealed, ensuring the product non-leaking, anti-corrosive, small in size, less noisy, easy to operate and maintain. The magnetic pumps are widely used for transporting acids, bases, oils and other fluids, which are either toxic and volatile or easy to leak, flammable and explosive.


    1. Outlet Diameter 6 - 65
    2. Flow Rate (Q) 15 - 850 (m3/h)
    3. Lift Head (H) 1.2 - 50 (m)
    4. Suction 2 - 8.3 (m)
    5. Power Consumption 0.025 - 15.5 (kw)

    Main Features


    The Gempump China magnetic pump cancels the mechanical seal and completely eliminates the inevitable disadvantages of running, emitting, dripping and leakage of the mechanical seal centrifugal pump. It is a priority for the leak free factory. Because the flow passage parts of the pump are made of stainless steel, the purpose of corrosion resistance is achieved. The magnetic coupling of the pump is integrated with the pump body, so it has the advantages of compact structure, convenient maintenance, safety and energy saving. The magnetic coupling of the pump can protect the transmission motor from overload.

    • Leak free, seal-less construction.
    • Simple, modular construction for easy of maintenance.
    • Non-metallic chemically inert materials offer excellent resistance to corrosive fluids.

    Product Application

    Magnetic pump is an ideal pump to eliminate running, emitting, dripping and leakage in chemical process, eliminate environmental pollution, create "leak free workshop" and "leak free factory", and realize safe and civilized production. It is widely used in the production process of petroleum, chemical, pharmaceutical, printing and dyeing, electroplating, food, environmental protection and other enterprises to transport corrosive liquids without iron filings, especially for the transportation of flammable, explosive, volatile, toxic and precious liquids.

    • Surface treatment
    • Water treatment
    • Chemical processing
    • Food processing
    • Fluid handling needs in a variety of OEM equipment

    Performance Parameters

    Mode

    Diameter

    Flow
    (m3/h)

    Water-Lift
    (m)

    Power
    (kW)

    Voltage

    (V)

    Material

    Inlet(mm)

    Outlet(mm)

    14CQB-5

    14

    10

    1.2

    5

    0.12

    220/380

    Staineless
    Steel

    16CQB-8

    16

    12

    1.8

    8

    0.18

    220/380

    20CQB-12

    20

    12

    3

    12

    0.37

    220/380

    25CQB-15

    25

    20

    5.4

    15

    1.1

    380

    32CQB-15

    32

    25

    6.5

    15

    1.1

    380

    32CQB-25

    32

    25

    4.8

    25

    1.1

    380

    40CQB-20

    40

    32

    10

    20

    2.2

    380

    40CQB-32

    40

    32

    11.5

    32

    4

    380

    50CQB-25

    50

    40

    14.4

    25

    4

    380

    50CQB-32

    50

    40

    13.2

    32

    4

    380

    50CQB-50

    50

    32

    7.8

    50

    5.5

    380

    65CQB-25

    65

    50

    16.8

    25

    5.5

    380

    65CQB-32

    65

    50

    25

    32

    7.5

    380

    80CQB-32

    80

    65

    50

    32

    11

    380

    50CQB-50

    80

    65

    50

    50

    15

    380

    100CQB-32

    100

    80

    60

    32

    15

    380

    100CQB-50

    100

    80

    60

    50

    18.5

    380

    Please note:16CQB-8---100CQB-50 can use explosion proof motor.
