Car Diagnostic Tester SDT106 Car Smoke Leak Detector Automotive
EVAP Leakage Gas Leakage Locator Oil Pipe Generator
Automobile Detector BT360 12V Car Battery Tester DESCRIPTION:
SDT106 Car Smoke Leak Detector is a professional auto pipe leak
detect tool. It will help us position cars motorcycles leakage on
pipe system quickly and exactly, such as :
Intake System Test, Exhaust Systems Test, Car Sealing Test, Fuel
Tank System Test.

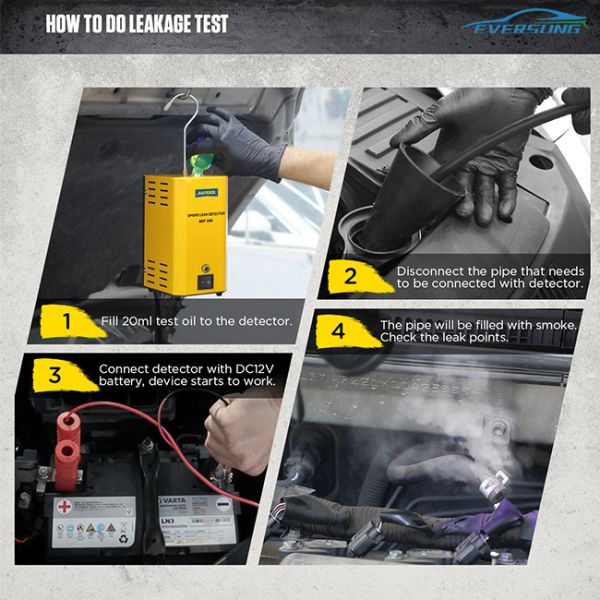

How to do leakage test ?
1. Fill 20ml baby oil to the detector for the first time. Open the
engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch,
and the detector starts to work.
4. In about 30 seconds, the pipe will be filled with smoke. Check
the leak points. Please use head lamp if necessary.
Car Diagnostic Tester SDT106 Car Smoke Leak Detector Features:
1.[Wide range of applications] For detecting the leakage of pipe
systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs,
light trucks and speedboats boats.Works on all car makes and
models.
2.[Powerful and easy to operate] The AUTOOL SDT 106 has its own air
pump, it does not rely on other air machine ,Connect the detector
with DC12V battery,It can be outputs lots of Smoke within 30
seconds after turning on.

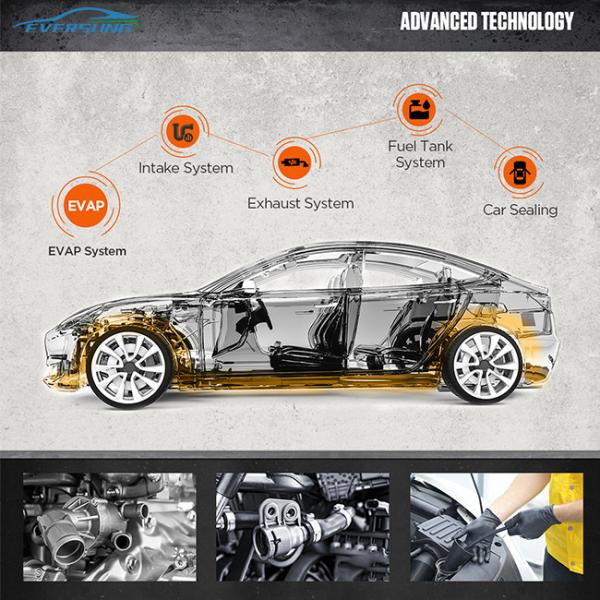

3.[Advanced technology] It works on the EVAP system (we also have
another version that specially designed for EVAP system).
4.[Overheat & Anti-frost protection] The detector has smart
protector. If it exceeds working limit,for e.g over 75℃. It will
power off automatically.
5.[3 years warranty] For damage caused by non-human factors, we
promise to resend parts for free within 3 years.

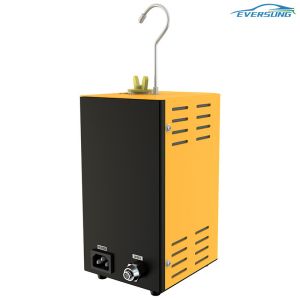

Main Unit Structure of Car Diagnostic Tester SDT106 Car Smoke Leak
Detector:
Hook: To hang the detector when detecting.
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Smoke Output Tube: The smoke outlet which connecting with detection
port
Power Clamp: To connect with vehicle battery. The voltage is DC12V.
Car Diagnostic Tester SDT106 Car Smoke Leak Detector Caution:
1.When you use this AUTOOL SDT 106 Car Smoke Leak Detector for the
first time, fill with 20ml oil . Please be careful NOT to beyond
this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and
it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the
detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from
smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs
interval rest.
7.The detector has an intelligent protector, if it exceeds the
working limit, such as over 75 ℃, it will automatically turn off
the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be
careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please
secure the other side with a rubber stopple.
Packing List :
1pc * AUTOOL SDT106 Car Smoke Leak Detector Main Unit
1pc * Hook (with hand-tighten nuts)
1pc * Rubber Connect Parts
1sets * Hard Rubber Hose Plug (with serial specification)
1pc * Standard Cone Adapter
1pc * Power Cord Clamp
1pc * Valve Core Wrench
1pc * Test Oil Refill Bottle(oil not included)
1pc * EVAP Special Connector
1pc * Smoke Hose
1pc * User Manual
