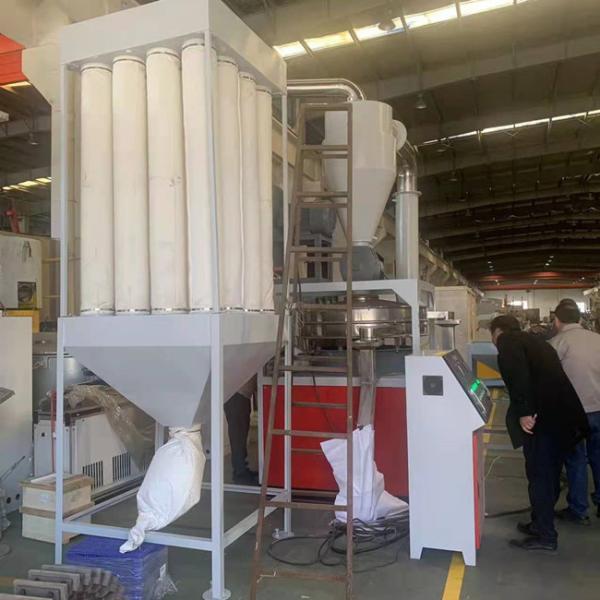

PVC material plastic pulverizer machine/milling machine/grinding
machine
Features
1.Low power consumption, high capacity
2.Simple structure and easy installation.
3.Host with the wind ,water circulation cooling system.
4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA,
PET, PP etc.
Details
1.New grinding disc design, high output, strong wear resistance,
life is twice that of ordinary grinding disc.
2.Using newly designed special bearings to achieve high speed
3.Easy installation and maintenance, can be cleaned by opening the
door cover
4.The grinding process is fully sealed, no dust leakage
5.Fully automatic, automatic feeding, discharging and sorting
6.The adjustment of the grinding gap is simple, just use the feeler
gauge and adjusting bolt to adjust
7.The main engine cooling system adopts wind and water combined
cooling
8.Reasonable design, small grinding cavity cross-section, the
material will be caught and ground immediately when it enters, and
it will be removed quickly, avoiding the temperature and
decomposition of the material, thus having higher output
Advantages
1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the
machine body.
Main Technical Parameters
| Model | MP-400 | MP-500 | MP-600 | MP-800 |
| Diameter of milling chamber(mm) | 350 | 500 | 600 | 800 |
| Motor power(kw) | 22-30 | 37-45 | 55 | 75 |
| Cooling | Water cooling+natural cooling |
| Air blower power(kw) | 3 | 4 | 5.5 | 7.5 |
| Fitness of LDPE power | 30 to 100 mm adjustable |
| Output of pulverizer(kg/h) | 100-120 | 150-200 | 250-300 | 400 |
| Dimension(mm) | 1800*1600*3800 | 1900*1700*3900 | 1900*1500*3000 | 2300*1900*4100 |
| Weight(kg) | 1300 | 1600 | 1500 | 3200 |
More Product Pictures
