Main character
1. One-phase protection for TN-S system
2. Pluggable module, easy for installation and maintenance
3. High discharge capacity, quick response
4. Double thermal disconnection devices, providing more reliable
protection
5. Green window will change when fault and also provide remote
alarm control at the same time

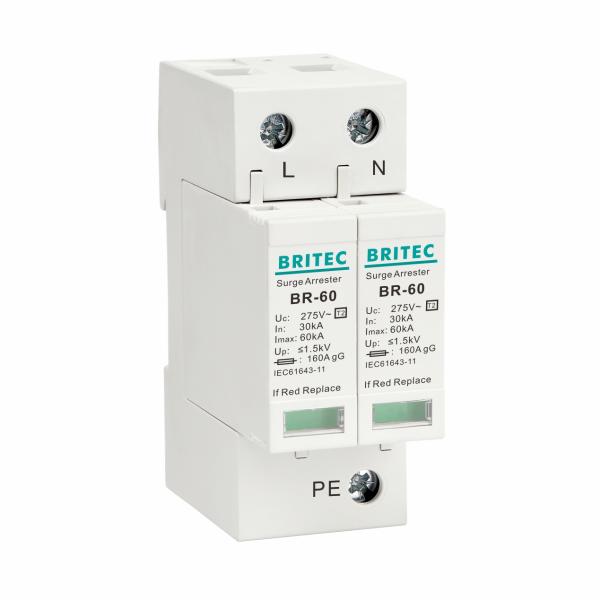

| Model Name | BR275-60 2P |
| Brand | BRITEC |
| Product Type | Surge Protection Device |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max. Continuous Voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 60kA |
| Norminal discharge current (8/20µs) In | 30kA |
| Voltage protection level Up | ≤1.5kV |
| Max. backup fuse | 160A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Manufacturer Guarantee | 5 Years Guarantee |
| No. of Phases | Single-Phase |
| Number of Poles | two pole |
| Operation temperature range | -40 ~ +80 degree |
| Remote control contacts | Optional |
Dimension:
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect
lightning discharges
High performance varistor with thermal disconnection tripping
device
Plug-in module/base design facilitate replacement of a failed
module without the need to remove system wiring etc.
Protection class: Type 2,Class II
Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from
voltage spike
BRITEC Type 2 Class C Surge Protection Advantage:
• Low residual voltage and quick response.
• Reliable control.
• Fault indication via red mark in the inspection window.
Noted:
We also can supply more of product for low--voltage power system
lightning protection, surge protective device with Imax=40kA ,80kA,
100kA, 200kA etc.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V
,440V,550V,800V,1000V
Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
Company profile:
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in
SPD products research and development, design, production and
service in the integration of modern professional surge protection
production enterprises, production base is located in Yueqing,
Zhejiang, China. With OEM/ODM high standard production workshop,
has a new standard of high-end production equipment, perfect
supporting factory layout is reasonable, the spacious production
workshop, according to the international surge protector factory
standard production design, is the domestic strong r & d
manufacturers.
Our certificate:
Workroom:
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 1 pcs. If this product we have in stock,
there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All products have two years guarantee.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for
more than 17 yeas. We have full experience of producing surge
protection device.
Q4: How to control the quality?
A: Each product must be test before shipment. Our production line
full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery.
If no have stock, normally around 3 weeks, depends on order.
