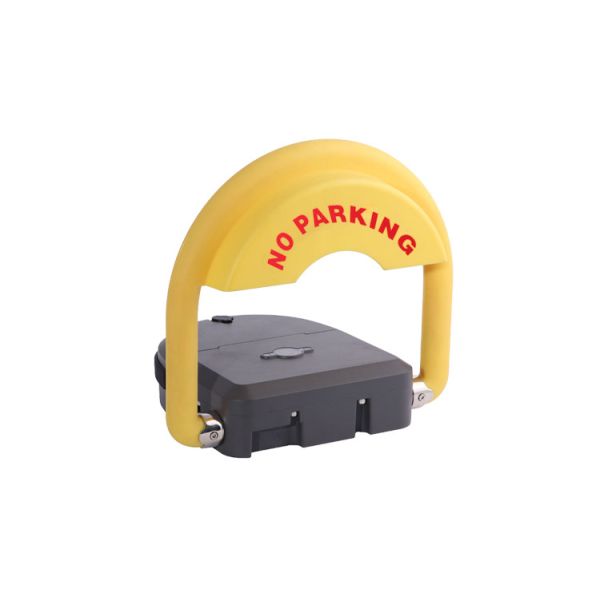

CE Certificate IP 68 Waterproof Wireless 180 Degree Intelligent
Automatic Solar Parking Lock
| 1 | Voltage | DC12V |
| 2 | Battery | DC12, 7Ah |
| 3 | Dimension | 357×370×82.5mm |
| 4 | Extended Height | 340mm |
| 5 | Remote Distance | ≤30M |
| 6 | Working Temperature | -35℃~+55℃ |
| 7 | Current | 0.4A |
| 8 | Weight Born | 5t |
| 9 | IP Class | IP68 |
| 10 | Running Time | 4~6s |
| 11 | Protect level | IP68 |
| 12 | parking guard battery life | 4 to 6 months |
| 13 | parking guard battery | rechargeable |
| 14 | Packing size | 550*120*100 mm |
| 15 | Weight | 8.5kg |
| 16 | thickness | 3.5MM |
FUNCTIONS AND FEATURES
1. Energy-saving; the battery is a best product in China and the
power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case
that the user misplaces the battery causing
short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casted Zinc alloy with high
quality, and the maximum weight of load-bearing is 5 tons;
the cabinet is coated with varnish, being water-proof and anti-rust
in harsh weather. The sway arm is made of fiber-reinforced
nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is
IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway
arm position when it is vertical; when the sway arm is forced
to a horizontal position, it will reposition vertically, unless the
user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes
almost zero noise. It is beneficial for battery and motor longevity
and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the
cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the
cabinet makes it easy to install.
PRODUCT INSTALLATION
A. Installation Spot: It is suggested to install the parking lock
at the very center of parking seat.
B. Installation Ground: To install the parking lock in a dry and
smooth concrete ground, and no radio signal interference
around.
C. Installation Steps: Drill four corresponding holes 10*5 mm in
the ground and use four expansion bolts prepared in the
package to fasten it. (as the following drawings show)

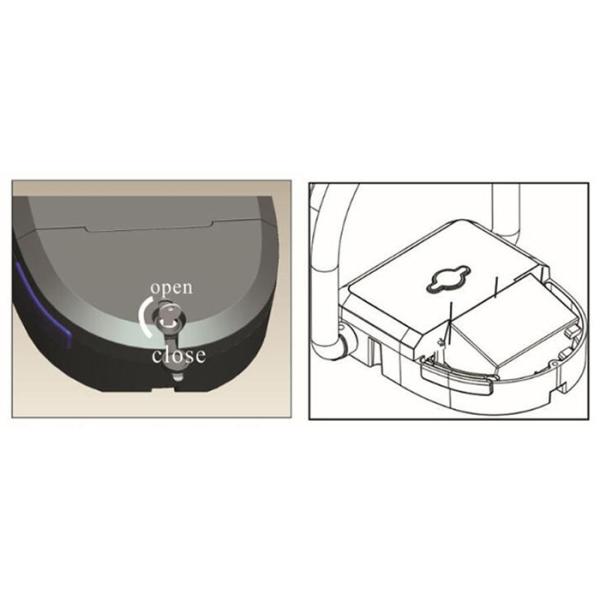

- Locking and unlocking
- The way to put in and out the battery
- Drilling 3*∅10 deep 50mm
- Put the nuts
- Positioning the parking lock
- Fastening the nuts
- Cover installing
| MOQ | 1 set |
| Port | Shenzhen, Guangzhou and others |
| Payment terms | T/T ; ; Western union; Credit card; Ali pay etc. |
| Producing capacity | 3000 Sets/Month |
| Leading time | 5 days |
| Package | Carton box |
FAQ
1. How many models parking lock do you have?
-------- New Zine-alloy Parking Lock model, Solar Parking Lock
model, Common parking lock.
2. How many remote controls are in each parking lock?
-------- 2 pcs.
3. What is the waterproof grade?
-------- PI68.
4. Can express delivery the parking lock?
-------- Yes, the express could deliver the parking lock , but we
need to take out the parking lock battery. As you know, the express
shipping company is strict to send the battery.
5. What's you warranty?
-------- 1 year time warranty.
