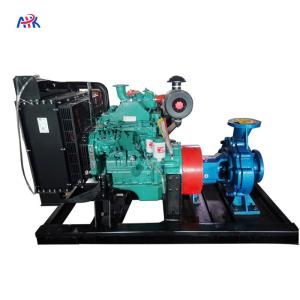

IS Series Drip Irrigation System Surface Centrifugal Clean Water
Pump Assembled With Diesel Engine
Diesel engine centrifugal end suction water pump is a single stage,
single suction water pump applies to work in system of industry and
city water supply & drainage, water supercharging of high rise
building, park spray irrigation, water pressurize in fire control,
remote water delivery, cycle refrigeration of heating and
ventilation, circulatory supercharger of cold-warm water in
bathroom, etc.
Diesel engine centrifugal end suction water pump is designed as
back pull out construction, which can help the end user maintenance
much easier, mainly applied in the hot water circulation, which
allowed the medium to 105 ℃
It also have many different materials design for meeting different
working conditions.
IS end suction centrifugal pump features:
1. Simple, reliable, small, light
2. Good anti-cavitation performance
3. Little power consumption
4. Easy to maintain
End suction centrifugal water pump, powered by electric motor, or
diesel engine(Special brand: WECHAI; Cummins)
Diesel engine centrifugal water pump models:
(Note: flow rate, head meters, material and power supply, ODM OEM
is available)
| Model | Flow | Head | Power | Speed |
| IS type | m3/h | l/s | m | kw | r/min |
| IS50-32-125 | 7.5 | 2.08 | 22 | 2.2 | 2900 |
| 12.5 | 3.47 | 20 |
| 15 | 4.17 | 18.5 |
| IS50-32-250 | 7.5 | 2.08 | 82 | 11 |
| 12.5 | 3.47 | 80 |
| 15 | 4.17 | 78.5 |
| IS65-50-125 | 15 | 4.17 | 21.8 | 3 |
| 25 | 6.94 | 20 |
| 30 | 8.33 | 18.5 |
| IS65-50-160 | 15 | 4.17 | 35 | 5.5 |
| 25 | 6.94 | 32 |
| 30 | 8.33 | 30 |
| IS65-40-200 | 15 | 4.17 | 53 | 7.5 |
| 25 | 6.94 | 50 |
| 30 | 8.33 | 47 |
| IS65-40-250 | 15 | 4.17 | 82 | 15 |
| 25 | 6.94 | 80 |
| 30 | 8.33 | 78 |
| IS65-40-315 | 15 | 4.17 | 127 | 30 |
| 25 | 6.94 | 125 |
| 30 | 8.33 | 123 |
| IS80-65-160 | 30 | 8.33 | 36 | 7.5 |
| 50 | 13.9 | 32 |
| 60 | 16.7 | 29 |
| IS80-50-250 | 30 | 8.33 | 84 | 22 |
| 50 | 13.9 | 80 |
| 60 | 16.7 | 75 |
| IS80-50-315 | 30 | 8.33 | 128 | 37 |
| 50 | 13.9 | 125 |
| 60 | 16.7 | 123 |
| IS100-80-125 | 60 | 16.7 | 24 | 11 |
| 100 | 27.8 | 20 |
| 120 | 33.3 | 16.5 |
| IS100-80-160 | 60 | 16.7 | 36 | 15 |
| 100 | 27.8 | 32 |
| 120 | 33.3 | 28 |
| IS100-65-200 | 60 | 16.7 | 54 | 22 |
| 100 | 27.8 | 50 |
| 120 | 33.3 | 47 |
| IS100-65-250 | 60 | 16.7 | 87 | 37 |
| 100 | 27.8 | 80 |
| 120 | 33.3 | 74.5 |
| IS100-65-315 | 60 | 16.7 | 133 | 75 |
| 100 | 27.8 | 125 |
| 120 | 33.3 | 118 |
| IS100-65-315B | 90.8 | 25.2 | 102 | 45 |
| IS125-100-200A | 187 | 52 | 44 | 37 |
| IS125-100-250A | 187 | 52 | 70 | 55 |
| IS125-100-315 | 120 | 33.3 | 132.5 | 110 |
| 200 | 55.6 | 125 |
| 240 | 66.7 | 120 |
| IS125-100-315B | 181.5 | 50.4 | 103 | 90 |
| IS65-40-250 | 7.5 | 2.08 | 21 | 2.2 | 1450 |
| 12.5 | 3.47 | 20 |
| 15 | 4.17 | 19.4 |
| IS65-40-315 | 7.5 | 2.08 | 32.3 | 4 |
| 12.5 | 3.47 | 32 |
| 15 | 4.17 | 31.7 |
| IS65-40-315B | 11.3 | 3.2 | 25.8 | 3 |
| IS80-50-200 | 15 | 4.17 | 13.2 | 2.2 |
| 25 | 6.94 | 12.5 |
| 30 | 8.33 | 11.8 |
| IS80-50-250 | 15 | 4.17 | 21 | 3 |
| 25 | 6.94 | 20 |
| 30 | 8.33 | 18.8 |
Widely Application of end suction centrifugal water pump:
1.industry and urban water supply
2. drainage system
3. agricultural water irrigation
4. fire fighting water system
This pump is suitable to transfer the liquid medium like water or
the physical and chemical feature like water. The temperature lower
than 105°c
Advantages of end suction centrifugal water pump:
1) Compact structure, an integrally horizontal structure, beautiful
appearance and less area of occupied land, comparing with the
ordinary ones, is reduced by 30%
2) Stable running, low noise, high concentricity of assembly. By
the straight joint between the motor and the pump, the middle
structure is made simplified, thus enhancing the running stability,
making the impeller of a good balance of moving-resting, resulting
in no vibration during running and improving the environment of
use.
3) No leakage. A mechanical seal of anti septic carbide alloy is
used for the shaft sealing so as to get rid of the serious leakage
of filings of centrifugal pumps and ensure the operating room clean
and neat.
4). Convenient service. Service can be easily done without removing
any pipeline because of the back-door structure.
